Development of TaqMan probes targeting the four major celiac disease epitopes found in α-gliadin sequences of spelt (Triticum aestivum ssp. spelta) and bread wheat (Triticum aestivum ssp. aestivum)



Celiac disease (CD) is caused by specific sequences of gluten proteins found in cereals such as bread wheat (Triticum aestivum ssp. aestivum) and spelt (T. aestivum ssp. spelta). Among them, the α-gliadins display the highest immunogenicity, with four T-cell stimulatory epitopes. The toxicity of each epitope sequence can be reduced or even suppressed according to the allelic form of each sequence. One way to address the CD problem would be to make use of this allelic variability in breeding programs to develop safe varieties, but tools to track the presence of toxic epitopes are required. The objective of this study was to develop a tool to accurately detect and quantify the immunogenic content of expressed α-gliadins of spelt and bread wheat.


Four TaqMan probes that only hybridize to the canonical—i.e. toxic—form of each of the four epitopes were developed and their specificity was demonstrated. Six TaqMan probes targeting stable reference genes were also developed and constitute a tool to normalize qPCR data. The probes were used to measure the epitope expression levels of 11 contrasted spelt accessions and three ancestral diploid accessions of bread wheat and spelt. A high expression variability was highlighted among epitopes and among accessions, especially in Asian spelts, which showed lower epitope expression levels than the other spelts. Some discrepancies were identified between the canonical epitope expression level and the global amount of expressed α-gliadins, which makes the designed TaqMan probes a useful tool to quantify the immunogenic potential independently of the global amount of expressed α-gliadins.


The results obtained in this study provide useful tools to study the immunogenic potential of expressed α-gliadin sequences from Triticeae accessions such as spelt and bread wheat. The application of the designed probes to contrasted spelt accessions revealed a high variability and interesting low canonical epitope expression levels in the Asian spelt accessions studied.


Gluten is a group of water-insoluble proteins which display useful properties for dough formation. These proteins are found in the seed of cereals such as bread wheat (Triticum aestivum L. ssp. aestivum), spelt [T. aestivum ssp. spelta (L.) Thell.], barley (Hordeum vulgare L.) and rye (Secale cereale L.). The gluten complex is composed of monomeric gliadins and polymeric glutenins which confer visco-elasticity properties to the dough [1, 2].

The consumption of gluten-containing foods can lead to several disorders in a fraction of the population, the best known being mediated by the adaptive immune system: celiac disease (CD) and wheat allergy (WA). They are both mediated by a T-cell activation in the gastrointestinal mucosa. WA involves immunoglobulins (Ig)-E that link to repeat sequences in wheat proteins whereas CD is an autoimmune disorder with a genetic predisposition of the patient, mediated by Ig-A and Ig-G antibodies. Beside these two disorders, a novel pathologic entity—called non-celiac gluten sensitivity (NCGS)—has gained importance and involves neither autoimmune nor allergic mechanisms. People affected by this illness display symptoms similar to CD but with usually normal small intestinal histology. These patients become healthier when gluten or wheat is withdrawn from the diet [3,4,5,6]. CD affects about 1% of the human population and is thus one of the most important food sensitivities worldwide [6, 7]. Some gluten peptides are partially resistant to proteolysis and are presented by HLA-DQ2 or -DQ8 molecules on antigen-presenting cells (APC) to T-cells which are hence activated. The subsequent production of inflammatory cytokines leads to small intestinal injuries such as reduction of villus height and a decrease of its absorptive capacity, which may cause severe malnutrition [8, 9]. Intra- and extraintestinal symptoms are encountered like diarrhea, bowel pain, fatigue, weight loss, anemia, osteoporosis, headaches and growth retardation [5, 6, 10, 11].

Different strategies are currently being investigated to address the CD problem, such as gluten detoxification, modulation of mucosal permeability, antigen presentation blockade, raising monoclonal antibodies against inflammatory cytokines, inhibition of T-cell recruitment, or oral tolerance induction [10]. Among them, the development of new cereal varieties lacking immunogenic gluten peptides but still displaying good baking properties is a promising approach given the high variability existing in bread wheat and its related taxa [10, 12]. Spelt is one of these taxa and is a member of the T. aestivum species, just like bread wheat. It is particularly interesting because of the high genetic diversity held in spelt germplasm collections [13,14,15]. Moreover, genetic variations in their immunogenic potential, their bread-making qualities and their content in proteins, lipids, micronutrients and fibers have been pointed out [13, 16,17,18,19].

Gliadins are usually classified into the α/β-, γ- and ω-types. The α-gliadins are the most studied ones since they trigger the strongest T-cell activation [8, 20,21,22]. The Gli-2 loci, which encode α-gliadins, are located on the short arm of the three homeologous chromosomes from group 6 and they include a number of α-gliadin gene copies that might reach 150 per haploid genome in some accessions [23]. However, a high proportion of these copies are pseudogenes: Ozuna et al. [24] showed that 39, 76 and 63% of α-gliadin genes from diploid, tetraploid and hexaploid wheat species respectively displayed a premature stop codon. The α-gliadin strong immunogenicity is mainly due to four T-cell stimulatory epitopes. Two are major epitopes (the overlapping DQ2.5-glia-α1 and -α2 epitopes) and the other two are minor epitopes (the DQ2.5-glia-α3 and DQ8-glia-α1 epitopes). The DQ2.5-glia-α2 epitope can be displayed in one, two or three copies and leads, when three copies are present, to the most immunogenic fragment of α-gliadin sequences known as the 33-mer fragment [25, 26]. Each of these four epitopes can be displayed in its canonical form, which is toxic, but some amino acid substitutions or deletions can reduce or suppress antigenic properties, according to the allelic variant [27]. Interestingly, the epitope variants highlighted in bread wheat α-gliadin sequences by Mitea et al. [27] were similar to those found in spelt accessions [16].The multigenic character of the α-gliadin family results in a very high allelic variability and leads, among other things, to high variations in the immunogenic content from one α-gliadin sequence to another. The exploitation of this variability to develop safe spelt or wheat cultivars will probably require the combination of classical breeding and molecular technologies [12], and tools to infer the presence of sequences coding for toxic epitopes are needed.

ELISA test kits have been developed to measure the amount of gluten in food samples and to detect gluten contamination. Generally speaking, they are based on different antibodies [28,29,30,31,32,33] which have been raised against gluten proteins. However, although ELISA kits provide information on toxicity, the restricted specificity of the antibodies limits the accuracy of ELISA tests regarding the immunogenic potential of varieties. Indeed, each antibody is raised against only a short stretch of one of the toxic epitopes, which may lead to the simultaneous detection of non-toxic epitope variants together with the canonical—toxic—epitope form, because the mutation is located outside the antibody hybridization site. It has been shown that G12 and A1 antibodies display the highest affinity for canonical epitopes included in the 33-mer fragment, but they also recognize allelic variants of these epitopes to a lesser extent [30]. Also, no ELISA kit can be used to study the four major α-gliadin T-cell stimulatory epitopes at the same time. Furthermore, antibodies used in ELISA test kits generally recognize more than one site. For example, the R5 antibody links to the epitope QQPFP and the related sequences QQQFP, LQPFP and QLPFP [33], but only one of these (LQPFP) is found in the composition of the four major canonical T-cell stimulatory epitopes of α-gliadin sequences. Lastly, such antibodies generally recognize different types of gluten proteins, such as the Skerritt antibody that detects ω-gliadins and HMW glutenin subunits. In addition to ELISA kits, some other techniques have recently been developed to detect and quantify different CD-immunogenic peptides, such as aptamer receptors and liquid chromatography combined with mass spectrometry [34,35,36].

The multigenic nature of α-gliadins and the high proportion of pseudogenes would require markers able to detect and quantify toxic sequences in expressed genes. The TaqMan probe system is one of the most commonly used to perform a quantitative detection of amplicons [37], and is particularly adapted to the study of the epitope expression profile since it makes it possible to highlight single-nucleotide polymorphisms (SNPs) and thus to discriminate allelic variants [38, 39].

The objective of this study was to develop and validate a tool to measure the immunogenic content for CD patients held in expressed α-gliadins. This objective was pursued by (1) developing epitope-specific TaqMan probes that only hybridize to the canonical form of the four epitopes, (2) selecting stable reference genes and developing specific TaqMan probes to normalize qPCR data and (3) validating the designed probes through their application to cDNA samples from 11 contrasted spelt accessions and three diploid species representative of the ancestral genomes of spelt and bread wheat.


Plant materials

Eleven contrasted spelt accessions selected in a previous genetic diversity study [16] as a representative panel of spelt diversity were used (BEL08, DK01, SPA03, BUL04, GER11, GER12, TAD06, SWI23, US06, Iran77d and IRA03). Three diploid accessions representative of the three ancestral genomes of spelt and bread wheat were added to this selection (Table 1): LB01 (Triticum urartu Tumanian ex Gandilyan, A genome), TR08 (Aegilops speltoides Tausch, S genome which is suspected to be the ancestor of the B genome) and TR10 (Aegilops tauschii Cosson, D genome). The accessions were kindly provided by the United States Department of Agriculture (USDA, Washington, USA), the Vavilov Institute of Plant Genetic Resources (VIR, Saint Petersburg, Russia) and the Center for Genetic Resources (CGN, Wageningen, The Netherlands). They were grown in 2013–2014 in Gembloux (Belgium) in field conditions. To ensure the self-pollination of the ears, they were enclosed with cellophane bags. All the immature grains were harvested 20 days post-anthesis (DPA), immediately frozen in liquid nitrogen and stored at −80 °C.

Table 1 Genetic material used to analyze the α-gliadin canonical epitope expression with TaqMan probes

RNA extraction, cDNA synthesis and plasmid extraction

Total RNA was extracted for each accession from 100 mg of ground seeds using the NucleoSpin® RNA Plant kit (Macherey-Nagel, Germany) and quantified by spectrometry. First-strand cDNA was synthesized with oligo(dT)18 primer from 250 ng RNA using the RevertAid H Minus First Strand cDNA Synthesis Kit (Thermo Scientific) in a volume of 20 µl. It was then quantified by spectrometry.

The plasmids of previously cloned α-gliadin sequences [16] were extracted with the GeneJet Plasmid Miniprep Kit (Thermo Scientific) after the overnight incubation of bacterial cultures at 37 °C. The GeneBank accession numbers of the sequences are reported in Additional file 1.

Design of epitope-targeting primers and probes

For each epitope, primers were developed (Table 2) so that they hybridize in conserved regions on both sides of the epitope. The design was carried out by aligning previously cloned spelt α-gliadin sequences [16] with the Vector NTI software (v6.0).

Table 2 List of the primers and TaqMan probes designed in this study

The probe development was carried out in accordance with the following important probe characteristics: (1) the amplicon should have a length of between 75 and 150 bp; (2) no guanine residue should be located at the 5′ end of the probe as it quenches the fluorescent dye; (3) runs of identical nucleotides should be avoided, especially four or more consecutive guanine residues; (4) the probe should have a Tm of 65–67 °C and a minimum length of 13 nucleotides; (5) the SNP position in the probe should be as central as possible to maximize the detection specificity [40]. TaqMan probes focusing on the four major T-cell stimulatory epitopes DQ2.5-glia-α1, DQ2.5-glia-α2, DQ2.5-glia-α3 and DQ8-glia-α1 were designed so that they only hybridized to the canonical form of each epitope (Table 2). This was done by aligning spelt α-gliadin sequences cloned in a previous study [16] with the Vector NTI software. The probes were designed to cover the entire regions where epitope mutations are found in spelt and bread wheat sequences.

Quantitative PCR

Amplifications with TaqMan probes were carried out using 10 µl of Takyon™ No ROX Probe 2× Mastermix dTTP Blue (Eurogentec, Belgium), 300 nM of each primer and 100 nM of TaqMan probe labeled with the FAM fluorophore and the TAMRA quencher (Eurofins Genomics, Germany), 400 ng of cDNA and nuclease-free water (Thermo Scientific) for a total volume of 20 µl. For amplifications using the SYBR® dye, each reaction was carried out using 10 µl of Takyon™ No ROX SYBR® 2x MasterMix dTTP Blue (Eurogentec, Belgium), 300 nM of each primer, 400 ng of cDNA and nuclease-free water for a total volume of 20 µl. Samples were loaded in a Hard-Shell® 96-Well PCR skirted white plate and sealed with a Microseal® ‘B’ PCR Plate Sealing Film (Bio-Rad). PCR amplifications were performed by the C1000 Touch™ Thermal Cycler coupled to the CFX96™ Real-Time detection system (Bio-Rad). The following thermal cycling protocol was used: initial denaturation at 95 °C for 3 min followed by 40 cycles at 95 °C for 10 s and 69 °C for 1 min.

Validation of primer efficiency and TaqMan probe specificity

Each set of primers was validated for its efficiency by carrying out qPCR amplifications with successive tenfold cDNA dilutions. For each qPCR reaction, the Ct (threshold cycle) value, defined as the fractional qPCR cycle number at which the fluorescent signal crosses an arbitrarily placed threshold, was measured for quantification. A calibration curve plotting the logarithm of the cDNA concentration on the x-axis and the corresponding Ct values on the y-axis was drawn. The efficiency was then calculated based on the curve slope: Efficiency (%) = [(10−1/slope) − 1] * 100. The primers were selected so that their efficiency was comprised between 96 and 100%.

The four probes were checked for their specificity by performing qPCR amplifications with previously cloned α-gliadin sequences [16] displaying either the canonical form or one of the allelic variants of the four epitopes (see Additional file 1). The probe specificity was validated when a fluorescent signal was measured only for the α-gliadin clone showing the canonical epitope.

Design of primers and probes targeting reference genes

With the aim of accurately normalizing qPCR data, Paolacci et al. [41] evaluated the expression stability of 32 reference genes in different wheat tissues: roots, shoots, stems, flag leaves, spikes, single floral organs and caryopses. On this basis, ten of the most stable genes were selected for the present study, and primers and TaqMan probes were designed to quantify their expression. Primers and probes were developed based on wheat contig sequences from the TIGR wheat Gene index database (, Table 2).

For each reference gene, TIGR contigs mentioned in Paolacci et al. [41] were aligned with Vector NTI and primers were designed in conserved regions to amplify 150–200 bp-long amplicons. The amplifications were checked in qPCR experiments with SYBR® dye on 400 ng of cDNA from 11 spelt accessions and three diploid species representative of the A, B and D genomes to ensure that the reference genes are present in the three genomes. Each cDNA sample was loaded in triplicate. The specificity of the primers targeting reference genes was checked by running the qPCR products on a 2% agarose gel.

TaqMan probes were then designed for the reference genes that showed an amplification, and each set of primers was validated for its efficiency (same procedure as detailed above). These probes were tested on the 14 accessions. The geNorm software was used following the procedure detailed by Vandesompele et al. [42] to calculate the M and V values. The M value can be used to classify the reference genes according to their expression stability by the stepwise exclusion in the calculation process of the least stable gene. The V value helps to determine the appropriate number of reference genes to use by analyzing the expression stability of the two most stable genes and by the stepwise addition of the next most stable reference gene to the analysis.

Epitope expression profiling with designed TaqMan probes

The four TaqMan probes designed to focus on the canonical epitopes and the four TaqMan probes targeting the four most stable reference genes were applied to the cDNA of the 11 spelt and three diploid accessions. Each accession was tested in two biological replications and each sample was loaded in triplicate. Measured Ct values were reported to Ct values of a calibrator. For the epitope-targeting probes, the calibrator was a previously cloned α-gliadin sequence (GER12_63, accession number KX174081) displaying one copy of each of the four canonical epitopes. This enabled the comparison of expression values from one epitope to another. For each reference gene, the calibrator consisted of the sample with the lowest Ct value, according to the geNorm user manual instructions. To allow comparison from one accession to another, the epitope expression levels were normalized to the expression of the reference genes, thanks to the calculation of normalization factors. The calculation of the epitope relative quantities was carried out using the \(2^{{\Delta {\text{C}}_{\text{t}} }}\) method, where ΔCt corresponds to Ct, calibrator − Ct, sample, and dividing by the normalization factor as recommended by Vandesompele et al. [42].

Alpha-gliadin expression profiling

The global α-gliadin expression level was evaluated in each accession by SYBR® qPCR amplifications using primers hybridizing on both sides of the DQ2.5-glia-α1, -α2 and -α3 epitopes (Table 2). Melting curve analyses followed qPCR amplifications to check that only one amplicon was amplified in each sample: the temperature was increased from 65 to 95 °C, with increments of 0.5 °C for 5 s (Additional file 2). Primers designed in TaqMan experiments to target reference genes were also used in qPCR amplification with SYBR® dye for normalization. The sample with the lowest Ct value was chosen as the calibrator for the \(2^{{\Delta {\text{C}}_{\text{t}} }}\) calculation.


Development of TaqMan probes specific to the four canonical α-gliadin epitopes

Four TaqMan probes and primer pairs were designed to focus on the canonical form of the four major α-gliadin T-cell stimulatory epitopes recognized by the immune system of CD patients: DQ2.5-glia-α1, DQ2.5-glia-α2, DQ2.5-glia-α3 and DQ8-glia-α1 epitopes (Table 2). These epitopes are found in α-gliadin sequences from both spelt and bread wheat, as previously stated. In order to avoid any overestimation of the immunogenic content, the probes could not hybridize to any known allelic variant of these epitopes. The specificity of each probe was confirmed by qPCR analyses: a fluorescent signal was clearly observable with the α-gliadin clones displaying the canonical epitope, while it was insignificant or absent with clones containing allelic variants (Fig. 1). The specificity of the probes was further confirmed on the cDNA of the three diploid species representative of the ancestral genomes (A, B and D) of spelt and bread wheat (see below). The primer efficiency was comprised between 96.4 and 99.5%, according to the primer pairs (see Additional file 3).

Fig. 1

Illustration of the specificity of the TaqMan probe designed to target the canonical DQ8-glia-α1 epitope. The high fluorescent signal observed with the α-gliadin clone displaying the canonical epitope (QGSFQPSQQ) combined with the insignificant or absent fluorescence with the clones containing the allelic variants validated the probe specificity. RFU Relative fluorescent units

Selection of stable reference genes and development of their specific primers and TaqMan probes

In order to normalize qPCR data, Paolacci et al. [41] evaluated the expression stability of 32 reference genes in different wheat samples. Based on their results, ten of the most stable genes were selected for the present study. Sets of primers and probes were developed to analyze their expression stability in immature seeds harvested 20 DPA from spelt and diploid species representative of the A, B and D genomes (Table 2). Among them, four reference genes (CDC, SOD, SAD and Sec23) were discarded as they showed under- or no expression in one of the three diploid species. Among the six remaining reference genes tested, the analysis with the geNorm software showed that ARF and DUF52 were the two most stable according to their average expression stability (M value, Fig. 2a), followed by RLI, VAS, GABA and UCC.

Fig. 2

geNorm output charts of M and V values for the six tested reference genes. a Average expression stability M of the remaining reference genes after stepwise exclusion of the least stable gene. b Pairwise variation V between two sequential normalization factors containing an increased number of reference genes, calculated for the determination of the optimal number of reference genes for normalization

The evolution of the pairwise variation (V) between two sequential normalization factors (NFn and NFn+1) showed decreasing values when an additional reference gene was used for calculation (Fig. 2b). The combination of the four most stable reference genes resulted in a V value of 0.156 between NF3 and NF4, and was chosen as the best compromise between an optimal cut-off (0.15) below which the inclusion of an additional reference gene is not required, and technical adequacy. The reference genes ARF, DUF52, RLI and VAS were thus selected to normalize qPCR data. The primers targeting these reference genes showed good efficiency (comprised between 97 and 100%, see Additional file 3) and specificity (Additional file 4).

Epitope expression profile

The qPCR experiments were carried out on cDNA samples of 11 spelt and three diploid accessions to measure Ct values (Additional file 5). These values were then used to calculate the relative quantity of the four canonical T-cell stimulatory epitopes compared to reference genes (Fig. 3). From one accession to another, high variations in the expression levels were displayed but the same trend was observed for each epitope. The analysis of variance showed, from one accession to another, statistically significant differences in the expression levels of the DQ2.5-glia-α1 (ANOVA F13 = 4.3829; P = 4.874e−3), DQ2.5-glia-α2 (ANOVA F13 = 7.9597; P = 2.202e−4), DQ2.5-glia-α3 (ANOVA F13 = 8.4628; P = 1.558e−4) and DQ8-glia-α1 (ANOVA F13 = 12.971; P = 2.251e−5) epitopes. The spelt accessions SPA03 and US06 showed the highest expression values for the DQ2.5-glia-α1, DQ2.5-glia-α2 and DQ2.5-glia-α3 epitopes, and US06 displayed the highest expression for the DQ8-glia-α1 epitope. Conversely, the Tajik TAD06 and Iranian Iran77d accessions almost always showed the lowest expression levels among the spelt accessions. The diploid accessions displayed more contrasting results. The TR08 accession showed no fluorescence for the DQ2.5-glia-α1, DQ2.5-glia-α2 and DQ2.5-glia-α3 epitopes. In the same way, the LB01 accession showed no expression for the DQ2.5-glia-α2 epitope and almost none for the DQ8-glia-α1 epitope.

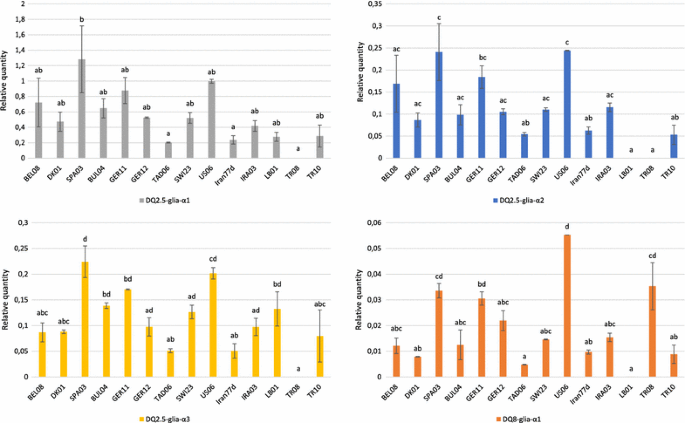

Fig. 3

Relative abundance of the four canonical α-gliadin epitopes among contrasted spelt accessions and diploid species. Developed TaqMan probes were used for the relative quantification of the expression of the four major α-gliadin T-cell stimulatory epitopes in their canonical form among 11 contrasted spelt accessions and the three diploid accessions representative of the ancestral genomes of spelt and bread wheat: T. urartu (LB01, A genome), Ae. speltoides (TR08, B genome) and Ae. tauschii (TR10, D genome). The relative quantities were calculated by dividing the \(2^{{\Delta {\text{C}}_{\text{t}} }}\) values by a normalization factor obtained through the expression analysis of four stable reference genes. Data are presented with standard error of the mean and significant differences detected by Tukey’s multiple comparison test are shown by different letters

The relative quantity of each canonical epitope was compared thanks to the calibration of qPCR values to a unique α-gliadin clone displaying the four canonical epitopes in one copy (Fig. 4a). Unsurprisingly, the SPA03 and US06 accessions showed the highest global expression values and the TAD06 and Iran77d accessions the lowest ones. The Ae. speltoides accession TR08 showed the highest expression for the canonical DQ8-glia-α1 epitope, but the low relative expression of this epitope compared to the others combined with the absence of expressed canonical DQ2.5-glia-α1, -α2 and -α3 epitopes in this accession led to a very low cumulative expression level for this accession. Intermediate comparable expression levels were measured for the DQ2.5-glia-α2 and DQ2.5-glia-α3 epitopes, whereas the DQ2.5-glia-α1 epitope clearly showed the highest expression compared to the three other epitopes.

Fig. 4

Expression profile of the cumulated canonical epitopes and the global α-gliadins among spelt and diploid accessions. a Relative quantification of the expression of the four cumulated canonical α-gliadin epitopes affecting CD patients among the 11 contrasted spelt accessions and the three diploid species T. urartu, Ae. speltoides and Ae. tauschii. The relative quantity of each epitope in the α-gliadin transcripts was calculated by the \(2^{{\Delta {\text{C}}_{\text{t}} }}\) method through the normalization of qPCR values to those obtained for the four most stable reference genes and the calibration to a unique α-gliadin clone displaying the four canonical epitopes in one copy. b Relative quantification of the expressed α-gliadin sequences in the same accessions. The sample with the lowest Ct value was chosen as calibrator. Error bars represent the standard error of the mean and the letters displayed above denote significant differences highlighted by Tukey’s multiple comparison test

Alpha-gliadin expression analysis

With the aim of investigating to what extent the measured relative quantities of canonical epitopes are related to the global α-gliadin expression level, an analysis was carried out using the SYBR® dye to detect α-gliadin amplicons, whatever the epitope variants (Fig. 4b). Again, the analysis of variance revealed statistically significant differences in the α-gliadin expression levels from one accession to another (ANOVA F13 = 5.1367; P = 2.256e−3). The diploid species Ae. speltoides (TR08) and Ae. tauschii (TR10) showed the lowest α-gliadin expression levels whereas a much higher value was reached for the remaining diploid species, T. urartu (LB01). In spelt accessions, the American US06 and the Iranian Iran77d accessions were identified as having the highest and the lowest expression levels, respectively. Interestingly, the amount of expressed canonical epitopes did not always correspond to the global expression level of α-gliadin sequences.


Development of epitope-targeting TaqMan probes

The objective of this study was to develop a tool to detect and accurately quantify the expression of the four α-gliadin toxic epitopes. The developed tool had to discriminate canonical epitopes from their allelic variants because, even if some natural variants can cause a T-cell response in some patients, only the canonical epitopes display a full toxicity [27]. It was therefore decided to develop TaqMan probes given their ability to discriminate among allelic variants differing by only one SNP.

Four TaqMan probes targeting the four α-gliadin canonical epitopes were developed and their specificity was demonstrated with previously cloned α-gliadin sequences. This specificity was confirmed by testing the probes with three diploid accessions (T. urartu, Ae. speltoides and Ae. tauschii), which are representative of the three ancestral genomes of spelt and bread wheat: the A, B and D genomes respectively. No fluorescent signal was noted for Ae. speltoides with the DQ2.5-glia-α1-, DQ2.5-glia-α2- and DQ2.5-glia-α3-targeting probes, and a very low expression level was measured for T. urartu with the DQ8-glia-α1-targeting probe (Fig. 3). This is consistent with the previously demonstrated absence of canonical DQ2.5-glia-α1, DQ2.5-glia-α2 and DQ2.5-glia-α3 epitopes in B genome α-gliadins [16, 27, 43] and the very low proportion of canonical DQ8-glia-α1 epitope in A genome α-gliadins [44].

The TaqMan probe’s specificity was tested with α-gliadin clones, ensuring that the probe does not hybridize to any known allelic variant of the epitopes found in spelt sequences. This specificity makes TaqMan probes a very accurate tool to infer the expression of the different toxic epitopes.

Mitea et al. [27] studied the epitope composition of 3022 expressed α-gliadin sequences originating from 11 bread wheat varieties to analyze the toxicity of each variant of the four epitopes. Almost every allelic variant found in bread wheat sequences was also identified in spelt sequences [16]. Moreover, the SNPs displayed in the remaining allelic variants in bread wheat sequences are located in the hybridization site of the probes developed in the present study. This makes the TaqMan probes designed in this project useful to study the immunogenic potential of both spelt and bread wheat α-gliadin sequences.

Selection of stable reference genes and development of specific TaqMan probes

The quantification of the gene expression level through qPCR requires a normalization step in order to accurately compare samples with one another. Reference genes showing a stable expression are usually used for this purpose. The normalization of qPCR data obtained with TaqMan probes thus required the use of additional TaqMan probes specific to such reference genes. Paolacci et al. [41] studied the expression stability of 32 reference genes using the cDNAs from 24 bread wheat plant samples, including different tissues, developmental stages and temperature stresses. They developed specific primers and used them in qPCR amplifications to assess the expression stability of the reference genes. We selected the most stable reference genes in developing grains on the basis of their results and designed specific primers/TaqMan probes systems to fit with the TaqMan amplification requirements. TaqMan probes specific to six reference genes were developed in this way and the most stable genes as well as the appropriate number of genes to use for normalization were determined. These reliable probes represent a normalization tool that could be useful in other studies where the expression level of sequences other than α-gliadins is analyzed.

Epitope expression profile in spelt accessions

The qPCR values measured with the probes focusing on the four canonical epitopes showed very different expression patterns according to the epitope (Fig. 4a). The canonical DQ2.5-glia-α1 epitope is by far the most strongly expressed, followed by DQ2.5-glia-α2, DQ2.5-glia-α3 and finally DQ8-glia-α1 to a lesser extent. DQ2.5-glia-α1 and DQ2.5-glia-α2 are overlapping epitopes which are displayed in one, two or three copies in the D genome. Three copies of each epitope lead to the full 33-mer fragment, which is the most immunogenic fragment of α-gliadin sequences [25, 26]. Moreover, the DQ2.5-glia-α1 epitope is encountered in its canonical form in the D but also in the A genome [43]. Combined with its possible duplication or triplication, this explains why the highest expression is observed for this epitope.

The analysis of epitope expression levels in different accessions also highlighted high variations. It has been shown by a sequencing analysis in a previous study [16] that spelt α-gliadins from the A genome were expressed most strongly and could display three out of four epitopes in their canonical form. The same study highlighted that SPA03 and US06 were the two accessions with the highest proportion of A genome α-gliadins. This supports the results obtained in the present study identifying the SPA03 and US06 accessions as those with the highest canonical epitope expression levels. The lowest expression values measured for TAD06 are also consistent with our previous results, in which the greatest proportion of B genome α-gliadins—displaying a high proportion of epitope variants—were found in this Tajik accession.

Unsurprisingly, the amount of expressed canonical epitopes is related to the expression level of α-gliadin transcripts. However, the global amount of expressed α-gliadins does not provide enough information to study the immunogenic content of the accessions, since some opposed trends can be identified between Fig. 4a, b: the quantification of the global α-gliadin expression level can lead to an under- or an over-estimation of the canonical epitope expression level, as noticed for the SPA03 and BUL04 or LB01 accessions, respectively. Generally speaking, although a correlation might appear for some accessions between the toxic epitope detection and the global α-gliadin expression levels, measures with epitope-targeting probes provide more precise information and demonstrates the usefulness of this TaqMan probes for developing new varieties with reduced immunogenic content without lowering the overall amount of expressed α-gliadins.

Interestingly, the three Asian spelt accessions included in the present study displayed the lowest canonical epitope expression levels, compared to the seven European accessions and the American one—presumably of European origin [14]. Several authors have suggested the existence of two independent origins for spelt—one in Asia and one in Europe—and genetic differences have been reported [45,46,47,48]. Asian spelt seems to have emerged, like bread wheat, through hybridization between the cultivated free-threshing tetraploid wheat Triticum turgidum ssp. turgidum (AABB genome) and the wild Ae. tauschii (DD genome), whereas European spelt may be the result of a secondary hybridization between bread wheat and cultivated non-free-threshing tetraploid emmer [Triticum turgidum ssp. diccocum (Schrank ex Schübler) Thell., AABB genome]. The lower canonical epitope expression levels measured in Asian spelt accessions could be linked to their putative distinct origin from European spelts. This opens up an interesting route to explore the α-gliadin immunogenic content of Asian spelt accessions with the aim of developing safer varieties for CD patients.

Comparison between the developed TaqMan probe method and other existing techniques

The developed probes involve the extraction of mRNA from immature seeds which requires a careful handling. However, this methodology enables to quantify the expression of the four major T-cell stimulatory epitopes related to CD independently on the same sample. This tool has been developed to carry out genetic studies of the toxic potential found in α-gliadin transcripts from spelt or bread wheat accessions, with the aim of applying them in breeding programs. It could be useful to track modifications at the sequence or at the expression level in molecular breeding. Conversely, ELISA kits focus only on one or two CD-related epitopes but are not completely specific to canonical epitopes. They are thus mostly intended to measure the global amount of gluten in food samples rather than to quantify the toxic content held in these samples. Beside ELISA, the methodology based on aptamers—binding the immunodominant 33-mer peptide—developed by Amaya-Gonzalez et al. [36] enables to quantify the gluten content through an electrochemical competitive enzyme-linked assay on magnetic particles. The selected aptamer is six times more sensitive than the reference ELISA test and it does not show any cross-reactivity with non-toxic proteins such as those found in maize, soya and rice. Nevertheless, these aptamers do not focus on individual epitopes and, despite their high sensitivity, the absence of cross-reactivity with allelic variants of the 33-mer has not been demonstrated.

In the recent years, another strategy coupling liquid chromatography (LC) to mass spectrometry (MS) has been developed [34, 35]. Like TaqMan probes developed in this work, the LC-MS technique enables to discriminate canonical epitopes from their allelic variants.

ELISA tests, aptamer assays and LC-MS are intended to detect gluten at the protein level, whereas TaqMan probes focus on α-gliadin transcripts. Given that the component responsible for triggering the disease is the protein, the toxic content of a flour cannot be irrevocably stated from analyses carried out on mRNA samples since slight variations can still occur between the mRNA and the protein stages. However, Van den Broeck et al. [35] showed that their quantification results, based on LC-MS method, were correlated with those of Salentijn et al. [49], who developed an RNA sequencing pipeline to analyze which α-gliadin sequences are being expressed.

The identification or the development of spelt or bread wheat accessions with a reduced immunogenic content is not sufficient for celiac disease patients since the low amount of toxic epitopes will still trigger the disease. However, the developed TaqMan probes could be used in conventional and/or molecular breeding programs (genome editing,…) aiming at developing celiac-safe varieties by tracking the immunogenic potential at the genetic level. This longer-term application of the designed probes could thus find an interest for the development of safe varieties for CD patients.

In addition to the application of the developed probes on α-gliadin transcripts, they could be used as a first approximation on the genomic DNA (gDNA) of spelt and bread wheat accessions if the results obtained from gDNA samples are globally correlated with those obtained from cDNA samples.


In this study, we have developed a tool to study the expression level of the four major α-gliadin T-cell stimulatory epitopes involved in celiac disease. This was achieved by designing, first, TaqMan probes that only hybridize to the canonical form of each epitope, and, second, TaqMan probes targeting stable reference genes. This work thus provides reliable tools to study the expression of the four α-gliadin canonical epitopes as well as for normalization purposes in studies where the expression level of sequences other than α-gliadins is analyzed. The application of the designed probes to contrasted spelt accessions revealed high variations in the expression levels of the canonical epitopes. In particular, 11 spelt accessions were analyzed and the three Asian spelts showed a low expression of these epitopes compared to the eight European ones. Even if more accessions are needed to draw definitive conclusions, these differing results between European and Asian spelts seem to be a way worth exploring, since it could open up an interesting route in the development of cereal varieties which are safe for CD patients.


  1. 1.

    Shewry PR, Halford NG, Lafiandra D. Genetics of wheat gluten proteins. Adv Genet. 2003;49:111–84.

  2. 2.

    Shewry PR, Halford NG. Cereal seed storage proteins: structures, properties and role in grain utilization. J Exp Bot. 2002;53:947–58.

  3. 3.

    Fasano A, Sapone A, Zevallos V, Schuppan D. Nonceliac gluten and wheat sensitivity. Gastroenterology. 2015;148:1195–204.

  4. 4.

    Mooney PD, Aziz I, Sanders DS. Non-celiac gluten sensitivity: clinical relevance and recommendations for future research. Neurogastroenterol Motil. 2013;25:864–71.

  5. 5.

    Sapone A, Bai JC, Ciacci C, Dolinsek J, Green PHR, Hadjivassiliou M, Kaukinen K, Rostami K, Sanders DS, Schumann M, Ullrich R, Villalta D, Volta U, Catassi C, Fasano A. Spectrum of gluten-related disorders: consensus on new nomenclature and classification. BMC Med. 2012;10:13.

  6. 6.

    Scherf KA, Koehler P, Wieser H. Gluten and wheat sensitivities—an overview. J Cereal Sci. 2016;67:2–11.

  7. 7.

    Rewers MJ. Epidemiology of celiac disease: what are the prevalence, incidence, and progression of celiac disease? Gastroenterology. 2005;128:S47–51.

  8. 8.

    Ciccocioppo R, Di Sabatino A, Corazza GR. The immune recognition of gluten in celiac disease. Clin Exp Immunol. 2005;140:408–16.

  9. 9.

    Stoven S, Murray JA, Marietta E. Celiac disease: advances in treatment via gluten modification. Clin Gastroenterol Hepatol. 2012;10:859–62.

  10. 10.

    Rashtak S, Murray JA. Review article: coeliac disease, new approaches to therapy. Aliment Pharmacol Ther. 2012;35:768–81.

  11. 11.

    Tonutti E, Bizzaro N. Diagnosis and classification of celiac disease and gluten sensitivity. Autoimmun Rev. 2014;13:472–6.

  12. 12.

    Shewry PR, Tatham AS. Improving wheat to remove coeliac epitopes but retain functionality. J Cereal Sci. 2016;67:12–21.

  13. 13.

    An X, Li Q, Yan Y, Xiao Y, Hsam SLK, Zeller FJ. Genetic diversity of European spelt wheat (Triticum aestivum ssp. spelta L. em. Thell.) revealed by glutenin subunit variations at the Glu-1 and Glu-3 loci. Euphytica. 2005;146:193–201.

  14. 14.

    Bertin P, Grégoire D, Massart S, de Froidmont D. High level of genetic diversity among spelt germplasm revealed by microsatellite markers. Genome. 2004;47:1043–52.

  15. 15.

    Caballero L, Martin LM, Alvarez JB. Variation and genetic diversity for gliadins in Spanish spelt wheat accessions. Genet Resour Crop Evol. 2004;51:679–86.

  16. 16.

    Dubois B, Bertin P, Mingeot D. Molecular diversity of α-gliadin expressed genes in genetically contrasted spelt (Triticum aestivum ssp. spelta) accessions and comparison with bread wheat (T. aestivum ssp. aestivum) and related diploid Triticum and Aegilops species. Mol Breed. 2016;36:152.

  17. 17.

    Gomez-Becerra HF, Erdem H, Yazici A, Tutus Y, Torun B, Ozturk L, Cakmak I. Grain concentrations of protein and mineral nutrients in a large collection of spelt wheat grown under different environments. J Cereal Sci. 2010;52:342–9.

  18. 18.

    Ruibal-Mendieta NL, Delacroix DL, Meurens M. A comparative analysis of free, bound and total lipid content on spelt and winter wheat wholemeal. J Cereal Sci. 2002;35:337–42.

  19. 19.

    Escarnot E, Agneessens R, Wathelet B, Paquot M. Quantitative and qualitative study of spelt and wheat fibres in varying milling fractions. Food Chem. 2010;122:857–63.

  20. 20.

    Arentz-Hansen H, Mcadam SN, Molberg O, Fleckenstein B, Lundin KEA, Jorgensen TJD, Jung G, Roepstorff P, Sollid LM. Celiac lesion T cells recognize epitopes that cluster in regions of gliadins rich in prolamine residues. Gastroenterology. 2002;123:803–9.

  21. 21.

    Camarca A, Anderson RP, Mamone G, Fierro O, Facchiano A, Constantini S, Zanzi D, Sidney J, Auricchio S, Sette A, Troncone R, Gianfrani C. Intestinal T cell responses to gluten peptides are largely heterogeneous: implications for a peptide-based therapy in celiac disease. J Immunol. 2009;182:4158–66.

  22. 22.

    Vader LW, Stepniak DT, Bunnik EM, Kooy YMC, De Haan W, Drijfhout JW, Van Veelen PA, Koning F. Characterization of cereal toxicity for celiac patients based on protein homology in grains. Gastroenterology. 2003;125:1105–13.

  23. 23.

    Anderson OD, Litts JC, Greene FC. The α-gliadin gene family. I. Characterization of ten new wheat α-gliadin genomic clones, evidence for limited sequence conservation of flanking DNA, and Southern analysis of the gene family. Theor Appl Genet. 1997;95:50–8.

  24. 24.

    Ozuna CV, Iehisa JCM, Gimenez MJ, Alvarez JB, Sausa C, Barro F. Diversification of the celiac disease α-gliadin complex in wheat: a 33-mer peptide with six overlapping epitopes, evolved following polyploidization. Plant J. 2015;82:794–805.

  25. 25.

    Molberg O, Uhlen AK, Jensen T, Flaete NS, Fleckenstein B, Arentz-Hansen H, Raki M, Lundin KEA, Sollid LM. Mapping of gluten T-cell epitopes in bread wheat ancestors: implications for celiac disease. Gastroenterology. 2005;128:393–401.

  26. 26.

    Shan L, Molberg O, Parrot I, Hausch F, Filiz F, Gray GM, Sollid LM, Khosla C. Structural basis for gluten intolerance in celiac sprue. Science. 2002;297:2275–9.

  27. 27.

    Mitea C, Salentijn EMJ, van Veelen P, Goryunova SV, van der Meer IM, et al. A universal approach to eliminate antigenic properties of alpha-gliadin peptides in celiac disease. PLoS ONE. 2010;5:e15637.

  28. 28.

    Skerritt JH, Hill AS. Monoclonal antibody sandwich enzyme immunoassays for determination of gluten in foods. J Agric Food Chem. 1990;38:1771–8.

  29. 29.

    Valdes I, Garcia E, Llorente M, Mendez E. Innovative approach to low-level gluten determination in foods using a novel sandwich enzyme-linked immunosorbent assay protocol. Eur J Gastroenterol Hepatol. 2003;15:465–74.

  30. 30.

    Moron B, Bethune MT, Comino I, Manyani H, Ferragud M, Lopez C, Cebolla A, Khosla C, Sousa C. Toward the assessment of food toxicity for celiac patients: characterization of monoclonal antibodies to a main immunogenic gluten peptide. PLoS ONE. 2008;3:e2294.

  31. 31.

    Mitea C, Kooy-Winkelaar Y, van Veelen P, de Ru A, Drijfhout JW, Koning F, Dekking L. Fine specificity of monoclonal antibodies against celiac disease-inducing peptides in the gluteome. Am J Clin Nutr. 2008;88:1057–66.

  32. 32.

    Scherf KA, Poms RE. Recent developments in analytical methods for tracing gluten. J Cereal Sci. 2016;67:112–22.

  33. 33.

    Kahlenberg F, Sanchez D, Lachmann I, Tuckova L, Tlaskalova H, Méndez E, Mothes T. Monoclonal antibody R5 for detection of putatively coeliac-toxic gliadin peptides. Eur Food Res Technol. 2006;222:78–82.

  34. 34.

    Schalk K, Lang C, Wieser H, Koehler P, Scherf KA. Quantitation of the immunodominant 33-mer peptide from α-gliadin in wheat flours by liquid chromatography tandem mass spectrometry. Sci Rep. 2017;7:45092.

  35. 35.

    Van den Broeck HC, Cordewener JHG, Nessen MA, America AHP, Van der Meer I. Label free targeted detection and quantification of celiac disease immunogenic epitopes by mass spectrometry. J Chromatogr A. 2015;1391:60–71.

  36. 36.

    Amaya-Gonzalez S, de-los-Santos-Alvarez N, Miranda-Ordieres AJ, Lobo-Castanon MJ. Aptamer binding to celiac disease-triggering hydrophobic proteins: a sensitive gluten detection approach. Anal Chem. 2014;86:2733–9.

  37. 37.

    Pfaffl MW. Quantification strategies in real-time PCR. In: Bustin SA, editor. A-Z of quantitative PCR. La Jolla: International University Line; 2004. p. 87–112.

  38. 38.

    Kim S, Misra A. SNP genotyping: technologies and biomedical applications. Annu Rev Biomed Eng. 2007;9:289–320.

  39. 39.

    Vignal A, Milan D, SanCristobal M, Eggen A. A review on SNP and other types of molecular markers and their use in animal genetics. Genet Sel Evol. 2002;34:275–305.

  40. 40.

    Malkki M, Petersdorf W. Genotyping of single nucleotide polymorphisms by 5′ nuclease allelic discrimination. Methods Mol Biol. 2012;882:173–82.

  41. 41.

    Paolacci AR, Tanzarella OA, Porceddu E, Ciaffi M. Identification and validation of reference genes for quantitative RT-PCR normalization in wheat. BMC Mol Biol. 2009;10:11.

  42. 42.

    Vandesompele J, De Preter K, Pattyn F, Poppe B, Van Roy N, De Paepe A, Speleman F. Accurate normalization of real-time quantitative RT-PCR data by geometric averaging of multiple internal control genes. Genome Biol. 2002;3(research0034):1.

  43. 43.

    Van Herpen TWJM, Goryunova SV, van der Schoot J, Mitreva M, Salentijn E, Vorst O, Schenk MF, van Veelen PA, Koning F, van Soest LJM, Vosman B, Bosch D, Hamer RJ, Gilissen LJWJ, Smulders MJM. Alpha-gliadin genes from the A, B and D genomes of wheat contain different sets of celiac disease epitopes. BMC Genom. 2006;7:1.

  44. 44.

    Li J, Wang S, Li S, Ge P, Li X, Ma W, Zeller FJ, Hsam SLK, Yan Y. Variations and classification of toxic epitopes related to celiac disease among α-gliadin genes from four Aegilops genomes. Genome. 2012;55:513–21.

  45. 45.

    Blatter RHE, Jacomet S, Schlumbaum A. About the origin of European spelt (Tritcum spelta L.): allelic differentiation of the HMW Glutenin B1-1 and A1-2 subunit genes. Theor Appl Genet. 2004;108:360–7.

  46. 46.

    Dvorak J, Deal KR, Luo M-C, You FM, von Borstel K, Dehgani H. The origin of spelt and free-threshing hexaploid wheat. J Hered. 2012;103:426–41.

  47. 47.

    Nesbitt M. Wheat evolution: integrating archaeological and biological evidence. In: Caligari PDS, Brandham PE, editors. Wheat taxonomy: the legacy of John Percival. London: Linnean Society; 2001. p. 37–59.

  48. 48.

    Zohary D, Hopf M, Weiss E. Domestication of plants in the Old World. 4th ed. Oxford: Oxford University Press; 2012.

  49. 49.

    Salentijn EMJ, Esselink DG, Goryunova SV, van der Meer I, Gilissen LJWJ, Smulders MJM. Quantitative and qualitative differences in celiac disease epitopes among durum wheat varieties identified through deep RNA-amplicon sequencing. BMC Genom. 2013;14:905.

Download references

Authors’ contributions

BD developed the TaqMan probes and designed and performed qPCR experiments with the advice of YM. DM and PB designed the research and supervised the experiments. EE implemented and monitored the field trials. BD, DM and PB wrote the manuscript. All authors read and approved the final manuscript.


The authors would like to thank Louis Hautier for his helpful advices in the statistical analyses. The technical assistance of Xavier Seffer, Roberte Baleux, Laurence Kutten and Agnès Melard is also acknowledged.

Competing interests

The authors declare that they have no competing interests.

Availability of data and materials

The datasets supporting the conclusions of this article are included within the article and its additional files.

Consent for publication

Not applicable.

Ethics approval and consent to participate

Not applicable.


Not applicable.
