Reliable allele detection using SNP-based PCR primers containing Locked Nucleic Acid: application in genetic mapping
© Nakitandwe et al; licensee BioMed Central Ltd. 2007
- Received: 22 November 2006
- Accepted: 07 February 2007
- Published: 07 February 2007
The diploid, Solanum caripense, a wild relative of potato and tomato, possesses valuable resistance to potato late blight and we are interested in the genetic base of this resistance. Due to extremely low levels of genetic variation within the S. caripense genome it proved impossible to generate a dense genetic map and to assign individual Solanum chromosomes through the use of conventional chromosome-specific SSR, RFLP, AFLP, as well as gene- or locus-specific markers. The ease of detection of DNA polymorphisms depends on both frequency and form of sequence variation. The narrow genetic background of close relatives and inbreds complicates the detection of persisting, reduced polymorphism and is a challenge to the development of reliable molecular markers. Nonetheless, monomorphic DNA fragments representing not directly usable conventional markers can contain considerable variation at the level of single nucleotide polymorphisms (SNPs). This can be used for the design of allele-specific molecular markers. The reproducible detection of allele-specific markers based on SNPs has been a technical challenge.
We present a fast and cost-effective protocol for the detection of allele-specific SNPs by applying Sequence Polymorphism-Derived (SPD) markers. These markers proved highly efficient for fingerprinting of individuals possessing a homogeneous genetic background. SPD markers are obtained from within non-informative, conventional molecular marker fragments that are screened for SNPs to design allele-specific PCR primers. The method makes use of primers containing a single, 3'-terminal Locked Nucleic Acid (LNA) base. We demonstrate the applicability of the technique by successful genetic mapping of allele-specific SNP markers derived from monomorphic Conserved Ortholog Set II (COSII) markers mapped to Solanum chromosomes, in S. caripense. By using SPD markers it was possible for the first time to map the S. caripense alleles of 16 chromosome-specific COSII markers and to assign eight of the twelve linkage groups to consensus Solanum chromosomes.
The method based on individual allelic variants allows for a level-of-magnitude higher resolution of genetic variation than conventional marker techniques. We show that the majority of monomorphic molecular marker fragments from organisms with reduced heterozygosity levels still contain SNPs that are sufficient to trace individual alleles.
- Locked Nucleic Acid
- Conventional Marker
- Marker Fragment
- COSII Marker
- Polymorphic AFLP
Single nucleotide polymorphisms (SNPs) represent the most common variations across a genome , they occur at a frequency of about one SNP in 1000 nucleotides in genomic DNA  and they can be used to directly detect alleles responsible for a trait of interest. SNPs have several uses in genetics including the detection of alleles associated with heritable human diseases  and inferences of population history . SNPs can also be used for fingerprinting and the generation of genetic maps, although these techniques frequently employ marker techniques that do not require any knowledge of genetic sequence. In general, popular techniques employ markers based on length differences, such as SSR [5, 6], on alterations within restriction sites of DNA cutting enzymes, such as RFLP [7, 8], AFLP , and CAPS , and on short polymorphic sequences, such as gene- and allele-specific markers (SCAR  and DALP ). Combinations of these principles often are applied to increase the number of useful polymorphisms detected in a limited number of steps. While having the advantage of being applicable at the species level and also in less-studied genomes, the common drawback of all these marker technologies is their dependence on the distribution and frequency of redundant, global features across a genome. A global marker technique that relies on the recognition site of a specific restriction enzyme can maximally detect all the corresponding restriction sites within a genome. In contrast, every SNP in context with its surrounding genomic sequence is unique. SNPs can mark functionally important allelic differences, and SNPs that flag individual alleles of known genes have been used widely as molecular markers. For example, in plants, the hypervariable self-incompatibility locus has been studied by applying allele-specific (AS) PCR primers (see ). In another example, alleles of the MDM2 locus associated with human breast cancer were detected by SNP genotyping . The enhanced reproducibility of SNP genotyping using PCR primers consisting of Locked Nucleic Acid (LNA) to detect human disease-associated alleles has been demonstrated [15, 16], and Latorra et al.  described the improved specificity of AS PCR primers containing 3'-LNA residues, compared to native DNA primers.
An advanced approach to genotyping comprises the exploitation of SNPs that flag individual alleles of conventional markers. It combines the advantages of markers that tag single or multiple loci and genome-wide, global features, and the property of SNP markers to discriminate alleles at the level of individual organisms.
We have developed a protocol for genetic fingerprinting of diploid individuals using SNPs from within monomorphic and therefore non-informative, conventional markers. Direct sequencing of conventional marker fragments led to the detection of allele-specific SNPs, and AS PCR was primed at these SNPs. To maximise the selectivity of the SNP-specific PCR, 3'-LNA-modified primers proved most successful. This time- and cost-efficient approach was used to map informative genetic loci in the highly homogeneous genetic background of S. caripense after conventional marker techniques had failed. S. caripense is a relative of potato and tomato, and the consensus potato and tomato maps  exemplify the close relationship among species within the genus Solanum. However, the goal of assigning the anonymous linkage groups on an initial S. caripense map (F. Trognitz and J. Nakitandwe, unpublished) by applying conventional SSR, CAPS, SCAR and Conserved Ortholog Sequence II (COSII; see Methods) markers of known position on the Solanum genetic maps could not be achieved. As an example, only six of 25 SSR markers previously mapped in potato and tomato amplified DNA from S. caripense, two of these were polymorphic but they had fragment sizes different from the markers previously mapped in potato and tomato and therefore could not be used to assign S. caripense chromosomes. The low level of heterozygosity in our S. caripense mapping population was testified by the small average number of only 10 markers per AFLP primer combination (318 polymorphic AFLP fragments obtained from genotyping with 31 primer pairs, results not shown). In contrast, Li et al.  obtained an average of 54 polymorphic AFLP bands per primer-restrictase combination in potato while Haanstra et al.  reported 49 in tomato. The overall limited degree of marker polymorphism obtained on our S. caripense genotypes indicates extreme levels of homogeneity and presence of minimum allelic diversity. This is surprising as these genotypes express strict self-incompatibility (SI, B. Trognitz, unpublished results). SI favours outbreeding and heterozygosity in large populations. In small, isolated populations of outbreeders, heterozygosity could be reduced to those parts of a genome that are closely linked to SI loci and our material may represent the latter type of populations [compare ].
Due to the failure to detect sufficient polymorphism in our S. caripense population using standard methods, we tested chromosome-specific COSII markers that had not only been mapped in tomato, but had amplified fragments in several related solanaceous species and in Arabidopsis thaliana . While most of these were non-informative when applied directly, they still contained allelic diversity detectable as SNPs and sufficient to design AS PCR primers.
Amplification and sequencing with non-informative COSII markers

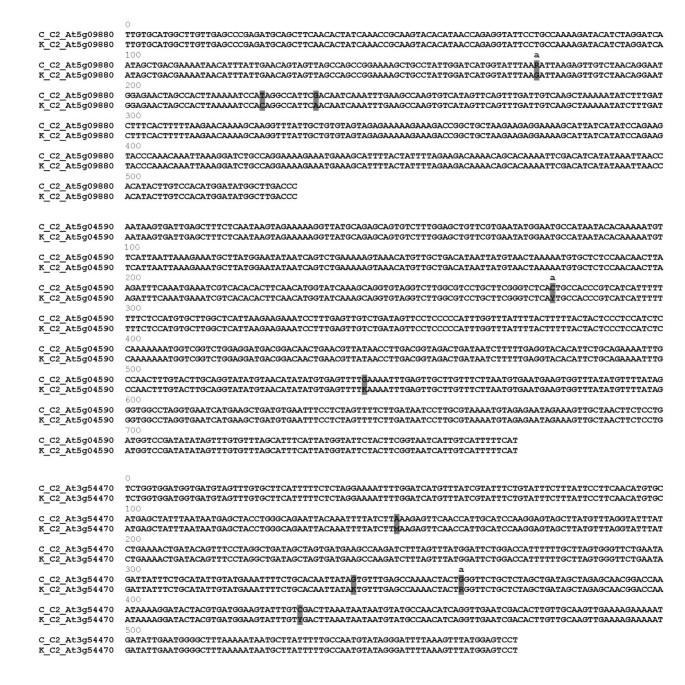

For the design of a selective AS SPD primer, one nucleotide that was dimorphic (indicating heterozygous state) in one parent and monomorphic in the other (homozygous) parent was selected from each COSII marker sequence. For the SPD marker At5g09880-177, the parental genotypes were A/G for parent C and G/G for parent K. Likewise, the C parent carried a C at position 280 of the At5g04590 marker fragment while parent K was heterozygous, C/T. For marker locus At3g54470-363, parent C was homozygous G/G while parent K carried A/G.
We tested the selectivity of our primers containing LNA in real-time PCR and observed 2–6 cycles of signal difference between template from plants containing the specific allele and plants devoid of it. In most cases, a signal was obtained also with plants that do not contain the specific allele targeted by the corresponding primer (not shown). This erroneous amplification may result from the high magnesium concentration in the buffer used (SYBR Green premix, BioRad) which did not create the stringent conditions required for our primers. Reduced levels of magnesium, as applied with the standard PCR (see Methods) should minimize amplification from mismatching primers. The overall discriminatory amplification in real-time PCR confirms results by Maertens et al. . The correct functioning of a primer containing terminal LNA nucleotides is also dependent on the specific primer (and template DNA) sequence [17, 26]. Therefore, maximum discriminatory power could be achieved with primers containing a combination of a single mismatch nucleotide at the third position from the 3' terminus [27, 28] and 3'-terminal LNA or 3'-subterminal ENA (2'-O,4'-C-ethylene nucleoside ) .
Genetic mapping of the SPD markers
Development of a set of chromosome-specific, sequence polymorphism-derived (SPD) markers for S. caripense
SPD markers for chromosomes of S. caripense. Summary of number of chromosome-specific COSII primers tested, SNPs detected, and success of genotyping and genetic mapping.
Number of COSII markers tested
Number of SNPs detected
Number of AS SPD primers designed
SPD markers successfully genotyped
SPD markers mapped
The detection of segregating SPD markers and their genetic mapping showed a high success rate in our population of S. caripense possessing a highly homogeneous genetic background, as compared to the conventional genotyping methods that had failed (see Background). More COSII- and other markers with known map position in Solanum are being used for amplification, SNP search, and design of SPD markers to assign the four remaining chromosomes.
Comparison of the SPD protocol with other SNP genotyping methods.
LNA base at 3' end
PPi assay, Luminometer, Amplifier and Recorder
Internal nucleotide mismatch
33P or Fluorescence
Acrylamide gel or sequencer, Restriction enzymes
The SPD marker method is not only applicable in population studies but will be very useful in detecting polymorphism among closely related individuals and populations constituted in a narrow genetic background. Though developed and tested in S. caripense, the technique can be easily applied in other plants, other conventional marker types and various applications, for example when individuals are closely related to one another. By using AS SPD primers it should be possible to perform SNP genotyping in genetic mapping, genealogical analyses, or gene expression. Favourable attributes of the SPD method include; i) high reproducibility due to the incorporation of a single LNA base at the 3'-end of the selective primer, ii) low cost of marker development; need for sequencing of short fragments only, iii) low cost of application; standard thermocycler and agarose gel electrophoresis equipment is sufficient, and iv) ease of SPD marker detection and reduction of time for marker analysis.
The S. caripense CK mapping population generated by crossing two unrelated parents denominated C and K was used. DNA from the parental plants and 186 progenies was extracted following the protocol described by Doyle and Doyle .
PCR amplification using primers for non-informative markers
PCR primers for amplification of COSII markers previously mapped to tomato (S. lycopersicum) chromosome XI.
Sequencing and SNP detection
The heterologous fragments amplified from genomic DNA of parents, with COSII primers that appeared as a single band on agarose gels, were cleaned through sephadex (GE Healthcare) on Multiscreen filter plates (Millipore) to remove residual primer. A 10-μl sequencing reaction volume was prepared using 1 μl of the cleaned PCR product, 0.5 μl of either the forward or reverse primer, 1 μl BigDye terminator v3.1 (Applied Biosystems), and 1 μl half BD 3.1 (Genetix). The sequencing PCR consisted of 35 cycles of 30 seconds at 94°C, 15 sec at 55°C, and 4 min at 60°C. The sequencing reaction product was cleaned through sephadex columns before adding 10 μl of Hi-Di formamide (Applied Biosystems). The samples were then analyzed on an ABI Prism 3100 Genetic Analyzer automated sequencer (Applied Biosystems) using the default settings. The resulting parental sequences were visually screened for SNPs in Sequencher 4.2 software (GeneCode).
Design of allele-specific primers
Based on the SNPs detected, allele-specific sequence polymorphism-derived (AS SPD) primers, featuring a single, allele-selective LNA base at their 3'-end were designed using Primer 3 software  and purchased from Sigma-Proligo. The LNA (underlined)-containing AS primers were: At5g09880-177A (177 indicates the position of the selective nucleotide, A) with the primer sequence, 5' CTATTGGATCATGGTATTAAA 3', AT5G04590-280T (5' CGTCCTGCTTCGGGTCTCAT 3'), and At3g54470-363A (5' GCTATCAGCTAGAGCAGAACCT 3').
SNP genotyping with AS SPD markers
The AS SPD primers in combination with the complementary primer of the corresponding original COSII primer pair (Table 3) were used to amplify fragments from genomic DNA of all 186 individuals of the mapping population. The PCR protocol described above for the original COSII primers was used with the modifications; higher annealing temperature (3–5°C increase) and reduced MgCl2 concentration (1.8 mM), which further increased the specificity of amplification. Amplicons were detected by electrophoresis in 1%-agarose gels.
Genotyping with AS SPD markers by real-time PCR
For a total reaction volume of 25 μl, approximately 50 ng of genomic template DNA was mixed with 12.5 μl SYBR Green premix (BioRad) and 320 nM of each primer. Reactions were replicated two times. The RT-PCR was run on an iCycler (BioRad) with 35 cycles of 15 sec at 95°C, 1 min at 61°C, and 1 min at 72°C.
Genetic mapping of sequence polymorphism-derived (SPD) markers
Polymorphism, indicated by presence vs. absence of a fragment on agarose gels was scored and this SPD marker data was genetically mapped on the parental maps of the CK population using Joinmap 3.0 software . Linkage groups of each parental map were calculated using the Kosambi mapping function with a logarithm of the odds (LOD) score of >3.
