High frequency, cell type-specific visualization of fluorescent-tagged genomic sites in interphase and mitotic cells of living Arabidopsis plants



Interphase chromosome organization and dynamics can be studied in living cells using fluorescent tagging techniques that exploit bacterial operator/repressor systems and auto-fluorescent proteins. A nuclear-localized Repressor Protein-Fluorescent Protein (RP-FP) fusion protein binds to operator repeats integrated as transgene arrays at defined locations in the genome. Under a fluorescence microscope, the tagged sites appear as bright fluorescent dots in living cells. This technique has been used successfully in plants, but is often hampered by low expression of genes encoding RP-FP fusion proteins, perhaps owing to one or more gene silencing mechanisms that are prevalent in plant cells.


We used two approaches to overcome this problem. First, we tested mutations in four factors involved in different types of gene silencing and/or epigenetic modifications for their effects on nuclear fluorescence. Only mutations in DDM1, a chromatin remodelling ATPase involved in repeat-induced heterochromatin formation and DNA methylation, released silencing of the RP-FP fusion protein. This result suggested that the operator repeats can trigger silencing of the adjacent gene encoding the RP-FP fusion protein. In the second approach, we transformed the tagged lines with a second T-DNA encoding the RP-FP fusion protein but lacking operator repeats. This strategy avoided operator repeat-induced gene silencing and increased the number of interphase nuclei displaying fluorescent dots. In a further extension of the technique, we show that green fluorescent-tagged sites can be visualized on moving mitotic chromosomes stained with red fluorescent-labelled histone H2B.


The results illustrate the propensity of operator repeat arrays to form heterochromatin that can silence the neighbouring gene encoding the RP-FP fusion protein. Supplying the RP-FP fusion protein in trans from a second T-DNA largely alleviates this problem. Depending on the promoter used to drive expression of the RP-FP fusion protein gene, the fluorescent tagged sites can be visualized at high frequency in different cell types. The ability to observe fluorescent dots on both interphase and mitotic chromosomes allows tagged sites to be tracked throughout the cell cycle. These improvements enhance the versatility of the fluorescent tagging technique for future studies of chromosome arrangement and dynamics in living plants.


Interphase chromosome arrangement and dynamics are increasingly recognized as factors that contribute to the regulation of eukaryotic gene expression [16]. The study of interphase chromosomes has been enhanced by techniques for marking genomic sites with fluorescent tags, which allow visualization and tracking of specific regions of the genome in living, untreated cells [7]. The technique is based on bacterial operator repressor systems such as the Lac repressor-lac operator (LacI-lacO) and the Tet repressor-tet operator (TetR-tetO) [8]. A nuclear-localized translational fusion between the repressor protein (RP) and an auto-fluorescent protein (FP) recognizes and binds to operator repeats that are integrated as a transgene array into the genome. The tagged sites can be viewed as bright fluorescent dots under a fluorescence microscope.

Fluorescence tagging has been used successfully to investigate interphase chromosome organization and dynamics in living plant cells [810]. However, weak and non-uniform nuclear fluorescence, possibly due to silencing of genes encoding RP-FP fusion proteins, often hinders the use of this technology in plants. The problem is particularly pronounced in root cells, which are otherwise well suited for this technique because of their low background fluorescence at commonly used excitation wavelengths [8, 11]. Here we describe strategies to improve the expression of the RP-FP fusion protein and the consistency of the fluorescent signals in interphase nuclei of different cell types. In addition, we demonstrate that the fluorescent tagged sites can be visualized and tracked on mitotic chromosomes in living cells.

Results and Discussion

Effects of mutations in epigenetic factors on expression of the RP-FP fusion protein

For the tagged lines developed in our laboratory, a possible reason for low nuclear fluorescence is silencing of the gene encoding the RP-FP fusion protein, which is adjacent to the operator repeats and under the control of the 35S promoter on the original T-DNA constructs (Fig. 1A). To test the occurrence and basis of epigenetic silencing, we introgressed mutations in four epigenetic silencing factors into five tagged lines (Fig. 1B). The epigenetic factors were chosen because of their involvement in different types of gene silencing and/or epigenetic modifications: (1) DDM1 is a chromatin remodelling ATPase important for repeat-induced heterochromatin formation and DNA methylation [12]; (2) DRD1 is a chromatin remodelling ATPase required for RNA-directed DNA methylation and transcriptional gene silencing (TGS) [12]; (3) RDR6 is an RNA-dependent RNA polymerase required for post-transcriptional gene silencing (PTGS), which is often observed with 35S promoter-driven transgenes [13]; (4) MOM1 is an unusual putative chromatin remodelling factor needed for TGS that is independent of DNA methylation [14].

Figure 1
figure 1

Constructs and chromosomal locations of fluorescent-tagged sites. A. T-DNA constructs for fluorescent tagging. Construct 16 is based on red fluorescent protein (R). Construct 25 is based on enhanced green fluorescence protein (G). Both constructs use the lacO s and the LacI (L) fused to R and G. Genes encoding RL and GL are under the control of the 35S promoter of CaMV (35Sp). B. Chromosomal positions of tagged sites. The insertion sites have been reported previously [8, 11]. Lines are named according to the construct used (16 or 25) followed by the line number (26, 79, 101, 107, 112). C. Constructs containing the RPS5 promoter to drive expression of genes encoding the EGFP-LacI fusion protein (GL) and histone H2B fused to monomeric DsRed (H2BmR). D. Constructs containing the GC1 promoter to drive expression of GL. Details of construct assembly using the modules shown in C and D are in the Methods section. Gene units are boxed; heavy outlines indicate genes encoding fluorescent fusion proteins (red, green) and lacO s (black). Arrows indicate the directions of transcription. Additional abbreviations: lb, T-DNA left border; rb, T-DNA right border; Np, NOS promoter; red 'R', DsRed2; green 'G', EGFP; t, transcriptional terminator from the 35S transcript of CaMV; nptIIb, neomycin phosphotransferase II for selection of bacteria on kanamycin; nt, NOS terminator; Mp, mannopine synthase promoter; ot, octopine synthase terminator; tag, 300 bp filler sequence; 19Sp, 19S promoter of CaMV; pDH51, pUC18 containing the 35S promoter-35S terminator cassette [33]; pBC, Bluescript plasmid encoding chloramphenicol resistance.

Plants that are homozygous for the respective mutations were crossed with the homozygous tagged lines and the resulting F1 progeny were allowed to self-fertilize to produce a segregating F2 population. F2 seedlings were genotyped to identify ones that are doubly homozygous for the tagged locus and the mutation in the desired epigenetic factor. Doubly homozygous F2 seedlings were screened for fluorescence in root cells at low magnification. Of the four mutations tested, only ddm1 improved expression of the RP-FP fusion protein, which was easily visualized under a fluorescence microscope in extended roots of doubly homozygous F2 seedlings (Fig. 2A, Additional file 1). The release of silencing in the ddm1 mutant was accompanied by a substantial loss of DNA methylation from the operator repeats (Fig. 2B, Additional file 1). No improvement of fluorescence or loss of methylation was observed in rdr6, drd1 or mom1 mutants (Fig. 2A, B; Additional file 1).

Figure 2
figure 2

Release of silencing of the DsRed-LacI gene and loss of DNA methylation from lac operator repeats in a ddm1 mutant. A. DsRed fluorescence in roots of seedlings doubly homozygous for a tagged locus (101, 107, 112) and an epigenetic mutation: drd1 (dr), rdr6 (r), wild type (wt), ddm1 (dd), mom1 (m). Increased fluorescence is observed only in the ddm1 mutant. The bar indicates 2 mm. B. DNA methylation analysis of lac operator repeats. The lac operator repeat array is ~9.2 kb (256 copies of a 24-bp lac O monomer plus a 12-bp linker sequence) [8]. The lac operator repeat arrays can potentially be cut into 315 bp fragments by the restriction enzymes Eco RI (E) and Nar I (N) [15]. Whereas the former is insensitive to cytosine methylation, Nar I will not cleave if the CG in its recognition site (GGCGCC) is methylated (compare N versus E lanes in the three WT panels). Retention of the higher band (mom1, rdr6 and drd1 lanes) after Nar I digestion signifies wild type levels of CG methylation; production of a ladder of smaller bands (ddm1 lanes) indicates loss of CG methylation. Size markers are indicated to the left. Data are shown for three tagged lines (101, 107, 112) into which we successfully introduced all four mutations (drd1, ddm1, sgs2, mom1). For the other two tagged lines (26, 79), we were unable to generate homozygous mutants for all four of the epigenetic factors. However, we did successfully introgress the ddm1 mutation into these lines, which resulted in loss of CG methylation from the lac operator repeats in ddm1 (Additional file 1).

Our findings indicate that silencing of the gene encoding the RP-FP fusion protein is correlated with DDM1-dependent DNA methylation of the adjacent operator repeats (Fig. 1A). However, expression of the RP-FP fusion protein is so high in the ddm1 mutant that nuclei are filled with fluorescence and individual dots are not discernable (data not shown). Therefore, it is not feasible to perform experiments on interphase arrangement and dynamics of tagged loci in a ddm1 mutant background.

In an independent study with another tagged line, named EL702C, ddm1 and another DNA hypomethylation mutant, met1, were also found to decrease methylation of lac operator repeats. However, loss of methylation did not alter the expression of operator repeat-associated genes, including the gene encoding the RP-FP fusion protein (GFP-LacI) [15]. Line EL702C may be similar to our line 26, which is exceptional in that methylation is lost from the operator repeats in the ddm1 mutant background but the expression of the RP-FP fusion protein, which is already quite high in wild type plants, does not increase (Additional file 1). It is not yet known why the gene encoding the RP-FP fusion protein is protected from silencing in line 26. One possibility is that there is a copy of the gene that is separated from the operator repeats owing to rearrangements within the integrated T-DNA copies. Operator repeats have been used in transgene constructs designed for chromatin charting of epigenetic regulators and gene expression at the T-DNA insertion site [16, 17]. These constructs may not always be reliable indicators of expression at the insertion site if operator repeats can potentially form methylated chromatin that induces silencing of adjacent genes.

Supplying the RP-FP fusion protein in trans: Use of cell type-specific promoters

The correlation between loss of methylation from the operator repeats and derepression of the adjacent gene encoding the RP-FP fusion protein in the ddm1 mutant suggested that silencing is a local, cis-acting effect. This suggestion is substantiated by the failure of the rdr6 mutation to release silencing of the RP-FP fusion protein, which indicates the absence of diffusible, trans-acting siRNAs capable of triggering PTGS. We thus tried a second strategy to improve the fluorescence-tagging technique by introducing a second T-DNA that encodes the RP-FP fusion protein but lacks operator repeats. This step also permits the replacement of the 35S promoter, which was used to drive expression of the gene encoding the RP-FP fusion protein in the original constructs that contain operator repeats (Fig. 1A), with cell type-specific promoters. The efficacy of this strategy is illustrated here for two different promoters: the RPS5 promoter (Fig. 1C), which is active in cells of the division zone of the root tip [18, 19], and the pGC1 promoter (Fig. 1D), which is active in guard cells [20]. With each promoter, we observed a high frequency of nuclei containing fluorescent dots in the respective cell type (root cells, Fig. 3; guard cells, Fig. 4). By contrast, when the 35S promoter is used to transcribe the gene encoding the RP-FP fusion protein, expression is highly variable and occurs mainly in a subset of cells in the upper part of the root, not in the division zone, and sporadically in leaves and in ovules [21].

Figure 3
figure 3

Fluorescent dots in nuclei of cells in root division zone. High magnification image of the division zone from a root of a seedling homozygous for the 112 tagged locus (Fig. 1B). The gene encoding the EGFP-LacI fusion protein is under the control of the RPS5 promoter, which is active in this region of roots. In the majority of nuclei, two separate dotes are visible. In about 15%, however, only a single dot is resolved (arrows). For each nucleus, the 3D inter-allelic distance in micrometers was determined using Imaris software for point detection and point-to-point distance measurements (Methods section). Values are shown graphically in Figure 5. The bar indicates 10 μm. The image shows a maximum projection in which all 41 optical sections are collapsed into one plane.

Figure 4
figure 4

Fluorescent dots in nuclei of guard cells. Images from a leaf of a plant homozygous for the 112 tagged locus. The gene encoding the EGFP-LacI fusion protein is under the control of the GC1 (guard cell) promoter. In the low magnification images (A, B), the GFP2 filter was used (at the excitation wavelength for GFP, chlorophyll has red auto-fluorescence using this filter). Many paired green dots, corresponding to guard cell nuclei, are visible in A (enlargement of boxed region shown in B). In the high magnification images (C, D), a YFP filter was used to see fluorescent dots (this reduces chlorophyll auto-fluorescence); D is the superimposition of the light microscopic image. Two fluorescent dots corresponding to the tagged sites are clearly visible above low background fluorescence in both diploid guard cell nuclei. The bars indicate 250 μm (A), 100 μm (B), and 5 μm (C and D).

High frequency and uniform expression of the RP-FP fusion protein through the use of cell type-specific promoters allows the measurement of significant numbers inter-allelic 3D distances in neighbouring cells of homozygous tagged lines. In cells of the root division zone, inter-allelic distances comprise a continuum of values, with most ranging between 1 μm to 5 μm (Fig. 5). The rather wide range of inter-allelic distances is consistent with previous results on smaller sample sizes from other cell types and suggests an essentially random arrangement of interphase chromosomes [11, 22].

Figure 5
figure 5

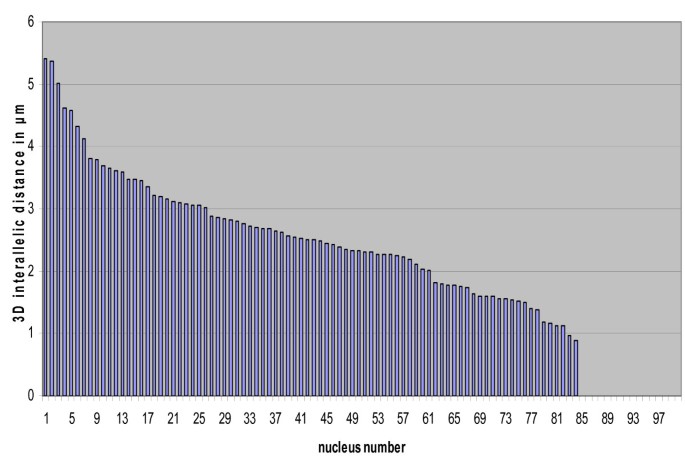

Range of inter-allelic distances in cells of root division zone. 3D inter-allelic distances in interphase nuclei of the root division zone (shown in Fig. 3) were measured using Imaris software as described in the Method section. The values were entered into Excel and the graph was produced by sorting in descending order. For nuclei numbered 86 to 100, two distinct dots were not distinguished by Imaris software. These are displayed on this graph as 'zero' and indicated by white arrows in Fig. 3. Possible explanations for this are discussed in the text.

If the inter-allelic distance is less than 1 μm, two distinct dots can be difficult to distinguish. This was observed in a fraction of the nuclei in the root division zone (Fig. 3, arrows), suggesting the inter-allelic 3D distance is less than 1 μm in these cells (Fig. 5). While these might represent cases of somatic pairing arising from associations between operator repeat arrays [15, 23, 24], other explanations are also possible. For example, one dot of a pair may be located outside of the imaged stack. Another possibility is that dots may be in close proximity if the tagged sites cluster at the metaphase plate in mitotic cells (see below). In an independent study, homologous pairing was reported to be higher for the lac operator arrays than for neighbouring euchromatic regions and was only partially reduced in the DNA hypomethylation mutants ddm1 and met1 [15]. This finding suggested that methylated operator repeats tend to pair in a manner that perturbs the natural spatial arrangements of interphase chromosomes [23]. As described above, we were unable to assess the influence of the ddm1 mutation and hypomethylation of the operator repeats on interallelic associations in our study because of the extremely high background fluorescence in ddm1 mutant. In general, however, we observe two separate dots in the majority of homozygous nuclei in the cell types tested (Figs. 3 and 4). A recent fluorescence in situ hybridization study found that the frequencies of homologous pairing of transgene repeat arrays may differ with the construct, chromosomal integration site, cell type, and number and repetitiveness of inserts [24].

Visualizing fluorescent-tagged sites on mitotic chromosomes

Fluorescent-tagging of genomic sites has been useful for studying interphase chromosome dynamics ('single particle tracking') in living yeast and animal cells [25, 26]. These studies have shown that chromatin generally diffuses through a restricted volume of the interphase nucleus but can undergo rapid directed movement in an energy-dependent mechanism over brief periods [26]. Single particle tracking in plants has also indicated constrained movement of tagged sites over short time periods [10, 11, 27]. Whether energy-dependent directed movement is also observed in plant cells in response to developmental or environmental cues remains to be determined.

Whereas fluorescence-tagged sites appear to be rather static in plant interphase nuclei, the situation is different in mitotic cells. Observations of the fluorescence-tagged sites in these cells should be possible provided the RP-FP fusion protein can bind to operator repeats on highly condensed mitotic chromosomes. To test this possibility, we introduced into the tagged lines a second transgene construct encoding EGFP-LacI fusion protein and histone H2B fused with red fluorescent protein (Fig. 1C, construct 5), which uniformly stains Arabidopsis chromatin [28]. When the RPS5 promoter is used to drive high frequency expression of both of these genes in cells of the root division zone, green fluorescent dots can be seen superimposed on red fluorescent mitotic chromosomes (Fig. 6A-G). Dual fluorescence labelling allows tracking of tagged sites on mitotic chromosomes as they separate and decondense in daughter cells (Additional files, 2, 3, 4). In principle, it should be possible to follow complete mitotic cycles and analyze whether fluorescent tagged sites are repositioned in daughter cell nuclei, a process that may provide opportunities for alterations in gene expression [1].

Figure 6
figure 6

Visualization of fluorescent tagged sites on mitotic chromosomes. In the division zone of the root, chromosomes are dual labelled with H2B-mRed and EGFP-LacI (both genes are under control of the RPS5 promoter). (A) Mitotic chromosomes at the metaphase plate are viewed as bright red bars (white arrow; shown enlarged in B) with EGFP-tagged sites visible as two clustered pairs of green fluorescent dots (C; merged image in D). (E) Mitotic chromosomes at anaphase with two pairs of EGFP-tagged sites (F; merged image in G). Interphase nuclei are dull red ovals (A, E, G). In the merged image (G), three neighbouring interphase nuclei with superimposed green fluorescent dots can be seen. All bars indicate 5 μm. Homozygous tagged line 112 was used for A-D; homozygous tagged line 26 was used for E-G. In both cases, the EGFP-LacI fusion protein was supplied in trans.


We have tested successfully several strategies for improving the chromosome fluorescence tagging technique in plants. Supplying the RP-FP fusion protein in trans avoids the problem of gene silencing associated with the operator repeats, which are targets of DDM1-dependent DNA methylation. Despite heavy methylation of the operator repeats, the RP-FP fusion protein is able to recognize and bind to these sequences in interphase nuclei. Moreover, the RP-FP fusion protein can also bind to operator repeats on highly condensed mitotic chromosomes. This robust and penetrant binding will allow the spatial organization and dynamics of tagged sites to be studied during the cell cycle and may provide a model for epigenetic inheritance of chromosomal proteins through mitosis [29]. Optimal visualization of fluorescent-tagged sites requires a suitable promoter to drive expression of the gene encoding the RP-FP fusion protein. Expression should be uniform within an organ or cell type and should not be too high, otherwise fluorescent dots will be obscured by high background fluorescence. Whereas the 35S promoter does not always fulfil these criteria, cell type-specific promoters often provide the desired level and consistency of expression. We see little evidence for frequent pairing of fluorescent tagged alleles in interphase nuclei despite high levels of DNA methylation at the operator repeats. Thus, fluorescent tagged sites should generally provide accurate indicators of natural spatial relationships of interphase and mitotic chromosomes in living cells. The improvements we have described will allow the fluorescence tagging technology to be more fully exploited in plants to study chromosome organization and dynamics during growth and development and under various environmental conditions.


Plant material

The fluorescence tagged lines (Arabidopsis thaliana ecotype Col-0) used in this study were described in previous publications [8, 11]. Transformation of A. thaliana was carried out using the floral dip method [30]. Transformed seedlings were selected on solid Murashige and Skoog (MS) medium containing 500 mg/l claforan and 20 mg/l phosphinotricin (Fig. 1C, constructs 1, 3 and 5) or 20 mg/l hygromycin (Fig. 1D, constructs 1 and 3).

Construction of recombinant plasmids

Binary vectors

BV-MpPAT ot Sal I (Fig. 1C, construct 1) is a binary vector modified to contain a Sal I site [31]. BV-ntHYG 19Sp Sal I (Fig. 1D, construct 1) is a binary vector modified to contain a Sal I site [32]. These vectors allow selection of transformed plants on phosphinotricin and hygromycin, respectively.

RP-FP constructs under the control of the RPS5 or GC1 promoters

The RPS5 promoter (At3g11940) [18] was isolated in two fragments by PCR from genomic DNA of A. thaliana ecotype Col-0: (1) Xho I-420-Eco RI and (2) Xho I-Eco RI-1230-Nhe I. The Xho I 420-Eco RI fragment was amplified using the following primers and cloned into pBC (Stratagene, La Jolla, USA):



The Xho I-Eco RI-1230-Nhe I fragment was amplified using the following primers and cloned into pBluescript (Stratagene, La Jolla, USA) modified to contain an additional Nhe I site:



These fragments were combined by inserting the Xho I- 420-Eco RI fragment between the Xho I- Eco RI- sites of the Xho I-Eco RI- 1230 - Nhe I fragment in Bluescript (Stratagene, La Jolla).

To obtain the GC1 promoter (At1g22690) [20], a Xho I GC1p- Nhe I fragment was synthesized by Mr.Gene (Regensburg, Germany). The -1140/+23 fragment was chosen because it was reported to give the strongest expression levels [20].

To make the final constructs, pBC-Xho I-35Sp Nhe I -GL t -Sal I (see Fig. 16.4, part b in reference [8]) was cut with Xho I and Nhe I releasing the 35Sp. The 35Sp was replaced with a fragment containing the RPS5 promoter (Xho I RPS5p Nhe I) leading to the construct Xho I RPS55 Nhe I - GL t- Sal I (Fig. 1C, construct 2) or with a fragment containing the GC1 promoter (Xho I GC1p Nhe I) leading to Xho I GC1p- Nhe I -GL t Sal I (Fig. 1D, construct 2). Then these constructs were cut with Xho I and Sal I and ligated into the Sal I-cut binary vector BV-MpPAT ot-Sal I (Fig. 1C, construct 1) or Sal I-cut binary vector BV-ntHYG 19Sp-Sal I (Fig. 1D, construct 1), respectively, leading to the constructs shown in Fig. 1C, construct 3 and Fig. 1D, construct 3. The construct shown in Fig. 1C, construct 5 has been introduced into all five tagged lines (Fig. 1B); the construct shown in Fig. 1D, construct 3 has only been introduced into line 112.

H2B constructs

A construct encoding a histone H2B-DsRed monomer fusion protein under the control of the RPS5 promoter (Fig. 1C, construct 4: pDH51 Nco I Xho I RPS5 Nhe I Bam HI - H2B - Bam HI mRed Xba I t -Hin dIII Xho I tag Xho I Hin dIII) was produced as follows:

First, the Xho I-RPS5-NheI promoter fragment (as described above in RP-FP constructs section) was adjusted for insertion into a modified pDH51 (see below) to a Nco I-Xho I-RPS5-Nhe I-Bam HI fragment by adding a Xho I-Nco I-tag-Nco I-Xho I tag into the Xho I site add a Nhe I-Bam HI tag-Bam HI-Nhe I into the Nhe I site.

pDH51 [33], which contains Nco I-35S promoter-Bam HI-Xba I-35S terminator Hin dIII (only restriction enzymes necessary for the construct are mentioned), was modified by inserting Xho I tags into the Nco I and Hin dIII sites of this plasmid. A gene encoding DsRed-monomer (Clontech, Palo Alto, USA) was inserted as Bam HI- Xba I fragment. Then the Nco I-35S promoter-Bam HI fragment was replaced by the NcoI-XhoI-RPS5-NheI-BamHI fragment described above. Finally, a fragment containing the gene encoding histone H2B (At5g22880) [28], Bam HI - H2B - Bam HI, was isolated by PCR from genomic DNA of A. thaliana ecotype Col-0 using the following primers:



This fragment was inserted in the right orientation into the Bam HI site before the gene encoding the DsRed-monomer. This construct was released with Xho I and cloned into the Sal I site of the binary vector shown in Fig. 1C, construct 3, resulting in Fig. 1C, construct 5. The inverted orientation of the 35S terminator regions (t) was stabilized by insertion of two copies of the Xho I tag of the construct in Fig. 1C, construct 4. All constructs were confirmed by sequencing.

Epigenetic mutants

The mutant alleles used in this study are: mom1-1, drd1-6, rdr6 (sgs2-1) and ddm1-5 (som8) Mutations were genotyped using the following primers:





Use of CD 34/CD 38 yields a fragment of 486 bp for wild type plants. Use of CD 38/LBa1 yields a fragment of 461 bp for the mom1 mutant.




Digestion with Nde II yields a 168 bp fragment for wild type and two fragments (73 and 95 bp) for drd1-6.




Digestion with Bst NI yield three fragments (150, 250 and 850 bp) for wild type and two fragments (400 and 850 bp) for rdr6/sgs2-1.




The fragment produced in the ddm1-5 mutant is approximately 0.5 kb; in wild type fragment is approximately 0.35 kb.

In all cases, the following PCR conditions were used: 1 min 95°C; [30 sec 95°C; 30 sec 55°C; 1 min 72°C; 50×]; 6 min 72°. The products were run on a 2.5% agarose gel.

Epi-fluorescence image acquisition

A. thaliana seedlings were germinated and grown on solid MS medium under a 16 hour light-8 hour dark cycle at 23°C. For pre-screening under low magnification for fluorescence in roots and leaves, untreated plantlets growing on solid MS medium in Petri dishes were examined on a Leica MZ16FA, fluorescence stereo microscope (Leica, Wetzlar, Germany) equipped with the following filters: Leica 10447227 (DsRed) and GFP2 Leica (10447221) (Leica, Wetzlar, Germany). Photographs were taken using a DFC300FX colour camera (Leica, Wetzlar, Germany).

For viewing fluorescent dots at high magnification, seedlings were removed from MS medium approximately 10 to 30 days after germination and mounted on a microscope slide in tap water. For roots, a slide with an indentation was used (Assistant, Sondheim, Germany, Cat. Nr. 2410). Leaves were mounted in a Series 20 Chamber (Model RC-26G, Warner Instruments, Hamden, USA) [34]. Roots were viewed using a Zeiss Axioplan 2 fluorescence microscope (Zeiss, Jena, Germany) with a Spot Pursuit charge coupled device (CCD) camera (Visitron, Puchheim, Germany) or a Zeiss Axiovert 200 M with Photometrix CCD camera Quantix (Visitron, Pucheim, Germany) [8]. Leaves were viewed with the latter microscope, which is an inverted microscope that can accommodate the Series 20 chamber.

To make optical sections (stacks) using both microscope set-ups, the multidimensional acquisition tool from Metamorph software (Molecular Devices, MDS Analytical Technologies, Toronto) was used. AutoDeblure (Autoquant, purchased from Bitplane, Zürich) was used for deconvolution. Imaris software Version 6.1.3 was used for point detection and point to point distance measurements (Imaris MATLAB extensions, purchased from Bitplane, Zürich). The dot diameter was set to 0.5 μm. One stack consists of approximately 40 acquisitions each separated by a distance of 0.2 μm. With an exposure time of one second per picture, one stack takes approximately 2 minutes for one color and four minutes with two colors.

Analysis of DNA methylation

DNA methylation at the lac operator repeats was analyzed using a methylation-sensitive restriction enzyme (Nar I) and Southern blotting. DNA was isolated from rosette leaves of adult plants as described previously [8]. Digestion with NarI and EcoRI (methylation-insensitive) was carried out according to the manufacturer's instructions (New England Biolabs, Massachusetts, USA). Protocols for Southern blotting and hybridization as well as the probe used to detect lac operator repeats were described previously [8].



three dimensional


cauliflower mosaic virus


charge-coupled device


decrease in DNA methylation1


defective in RNA-directed DNA methylation1

DsRed or just R:

Discosoma sp. red fluorescent protein

EGFP or just G:

enhanced green fluorescent protein


green fluorescent protein



mRed or mR:

DsRed-monomer fluorescent protein

GC1p or pGC1:

guard cell promoter


histone H2B


hygromycin phosphotransferase




Lac repressor protein

lacO lac :

operator repeats




Morpheus molecule1


Murashige and Skoog medium


nuclear localization signal


nopaline synthase


neomycin phosphotransferase II


phosphinotricin-acetyl transferase


post-transcriptional gene silencing


RNA-directed DNA methylation


RNA-dependent RNA polymerase 6

RP-FP fusion protein:

repressor protein-fluorescent protein fusion protein

RPS5p or pRPS5:

ribosomal protein small subunit 5 promoter


small interfering RNAs


transferred DNA




transcriptional gene silencing
