Isolation of a strong Arabidopsis guard cell promoter and its potential as a research tool



A common limitation in guard cell signaling research is that it is difficult to obtain consistent high expression of transgenes of interest in Arabidopsis guard cells using known guard cell promoters or the constitutive 35S cauliflower mosaic virus promoter. An additional drawback of the 35S promoter is that ectopically expressing a gene throughout the organism could cause pleiotropic effects. To improve available methods for targeted gene expression in guard cells, we isolated strong guard cell promoter candidates based on new guard cell-specific microarray analyses of 23,000 genes that are made available together with this report.


A promoter, pGC1(At1g22690), drove strong and relatively specific reporter gene expression in guard cells including GUS (beta-glucuronidase) and yellow cameleon YC3.60 (GFP-based calcium FRET reporter). Reporter gene expression was weaker in immature guard cells. The expression of YC3.60 was sufficiently strong to image intracellular Ca2+ dynamics in guard cells of intact plants and resolved spontaneous calcium transients in guard cells. The GC1 promoter also mediated strong reporter expression in clustered stomata in the stomatal development mutant too-many-mouths (tmm). Furthermore, the same promoter::reporter constructs also drove guard cell specific reporter expression in tobacco, illustrating the potential of this promoter as a method for high level expression in guard cells. A serial deletion of the promoter defined a guard cell expression promoter region. In addition, anti-sense repression using pGC1 was powerful for reducing specific GFP gene expression in guard cells while expression in leaf epidermal cells was not repressed, demonstrating strong cell-type preferential gene repression.


The pGC1 promoter described here drives strong reporter expression in guard cells of Arabidopsis and tobacco plants. It provides a potent research tool for targeted guard cell expression or gene silencing. It is also applicable to reduce specific gene expression in guard cells, providing a method for circumvention of limitations arising from genetic redundancy and lethality. These advances could be very useful for manipulating signaling pathways in guard cells and modifying plant performance under stress conditions. In addition, new guard cell and mesophyll cell-specific 23,000 gene microarray data are made publicly available here.


Stomata are located on the leaf surface and are the main conduit for water transpiration and CO2 influx into leaves. The stomatal aperture is regulated by multiple physiological factors such as light, CO2, and plant hormones including abscisic acid (ABA) [15]. These stimuli regulate the stomatal aperture by affecting the cellular activities of the two adjacent guard cells, which form the stomata.

Many genes are important for guard cell function as demonstrated by forward genetic screens and reverse genetic functional analyses. To improve plant performance under stress conditions, manipulating gene function specifically in guard cells offers advantages over manipulation at the whole plant level. For example, a dominant mutation or a knock out mutation in an essential gene at the whole plant level might be lethal. This problem could be avoided by expressing the mutated gene or silencing the specific gene in guard cells only. Secondary messengers, such as calcium, reactive oxygen species, inositol phosphates, and sphingolipids, have been shown to play a critical role in guard cell signaling [611]. Molecular reporters for some of these secondary messengers have been developed and used in mammalian cell biology, such as yellow cameleon (YC) for calcium [12] and Hyper for H2O2 [13]. Several calcium reporters have been used for studies in plant biology, including indo-1, fura-2, aequorin, and yellow cameleon [1419]. Single cell imaging of second messengers in intact plants could provide an approach to analyze second messengers within the leaf and plant context. Intact plant imaging of single cells requires specific reporter gene expression in target cells with low background in the surrounding cells.

The widely used constitutive 35S cauliflower mosaic virus promoter drives expression of an interested gene in most parts of the plant [20]. The 35S promoter can also drive gene expression in guard cells [15, 2123]. One copy of the 35S promoter, however, often drives weak expression in guard cells while two tandem 35S promoters provides approximately two-fold higher expression [21, 22]. In addition, gene expression driven by the 35S promoter is not always uniform in guard cells even in the same leaf. Furthermore, gene expression in many different T-DNA insertion mutant lines using the 35S promoter has proven to show an exceedingly low success rate for reporter detection in guard cells for unknown reasons (J.M. Kwak, G.A. Allen and I.M. Mori unpublished observation).

The KST1 promoter can drive reporter gene expression in guard cells and flowers in potato [24]. But the KST1 promoter has not been used widely in research to drive specific expression in Arabidopsis or other plant guard cells. In Arabidopsis, the KAT1 promoter drives primarily reporter gene expression in guard cells though the expression of the reporter was also observed in the root vascular tissue in some transgenic plants [25]. Furthermore, the KAT1 promoter is not sufficiently strong for high-level expression or repression in guard cells.

Here we used a guard cell specific microarray-based approach to analyze putative strong guard cell specific promoters. One candidate promoter, pGC1 (At1g22690), drove very strong expression of reporter genes (GUS and GFP-based calcium reporter) in guard cells of both Arabidopsis and tobacco. Specific gene suppression in guard cells was also achieved by pGC1 driving antisense repression.


Isolation of pGC1, a strong guard cell promoter

Guard cell-specific microarray data were analyzed side by side with mesophyll cell-specific microarray data [26] to search for strong guard cell promoter candidates with low expression levels in mesophyll cells. Additional guard cell and mesophyll cell microarray experiments were conducted covering 23,000 genes (ATH1 Affymetrix) (See Additional files 1, 2, 3, 4, 5, 6, 7 and 8). Furthermore, candidate genes were analyzed using Genevestigator to select genes with low expression levels in non-leaf tissues across more than 2000 microarray experiments [27]. Guard cells and mesophyll cells exposed to ABA were also analyzed, as ABA synthesis is induced under several stress conditions. The following criteria were used for selection of strong guard cell promoter candidates. The raw signal in guard cells was set above 10000, the raw signal in mesophyll cells was set below 1000, and the reduction or induction fold by ABA was set to be less than two. Transcriptional profiles of several genes passed these criteria (Figure 1 and Additional file 9). The putative promoters (1–2 kb upstream of the annotated ATG start codon) (Figure 2) were amplified by PCR and cloned into a GUS reporter vector. GUS staining of the T1 transgenic plants showed guard cell specific staining for one particular promoter candidate (At1g22690), designated as pGC1. At1g22690 is among the most highly expressed genes in guard cells. It showed relatively high expression in guard cells and low expression in mesophyll cells. At1g22690 encodes a small cysteine rich protein (119 amino acids). It belongs to the GASA family (GA-stimulated transcript (GAST1) protein homolog). A study by Wigoda et al. [28] suggested that GIP2 (a GASA protein from Petunia hybrida) exhibited in planta antioxidant activity. T-DNA insertional line in At1g22690 did not yield any noticeable stomatal phenotypes under our typical laboratory conditions (unpublished data). Furthermore, our guard cell microarray data showed that two other GASA genes also showed high expression level in guard cells (GASA 1 (At1g75750) and GASA 4 (At5g15230)).

Figure 1

Transcriptional profiles of guard cell expressed genes in both guard cells and mesophyll cells. Average transcript levels of KAT1 (At5g46240), AtMYB60 (At1g08810), AtMYB61 (At1g09540), RAB18 (At5g66400), GC1 (At1g22690), and AtACT7 (At5g09810) from two independent microarrays are displayed. While KAT1, AtMYB60 and GC1 all exhibited guard cell-specific expression, the transcript level of GC1 was the highest among the three genes. RAB18 also exhibited very strong guard cell expression, but its expression level in mesophyll cells was strongly induced by ABA treatment.

Figure 2

Putative promoter sequence of GC1. The transcriptional start site is denoted as +1, and the putative start codon (ATG) is located at +23/+25 bp. The Dof target sites, 5'-TAAAG-3' (+) or 5'-CTTTA-3'(-), which have been shown to contribute to guard-cell specific gene expression [24], are boxed. The ABRE, abscisic acid-response element, 5'-ACGTG-3' (+) or 5'-CACGT-3' (-), are underscored and labeled. The TATA box (5'-TATATAA-3') and the start codon (ATG) are shown in bold with dotted boxes. The arrowheads mark the positions for promoter deletion analyses in Figure 4.

We analyzed GC1 (At1g22690) gene expression in response to different treatments in the microarray data compiled by Genevestigator [27, 29]. Among 96 treatments, 8 treatments affected At1g22690 expression more than two fold. Salt and osmotic stress dramatically deceased At1g22690 gene expression (more than 10 fold) [30]. Meanwhile, light, ABA, GA, cold or drought did not induce more than a two-fold change in gene expression of At1g22690. This suggests that GC1 (At1g22690) has a relatively constant expression under most common situations.

Interestingly, the pGC1::GUS not only delivered strong GUS expression in guard cells in leaves (Figure 3A,B), but also in guard cells in petioles and hypocotyls (Figure 3C,D,E). GUS staining from other candidate promoter-GUS fusions was either not very strong in guard cells and/or showed reporter expression in other tissues (data not shown). We therefore focused on pGC1 for the rest of this study. The GC1 promoter was also fused to a second reporter, a GFP-based calcium reporter, yellow cameleon 3.60 (YC3.60) [31]. Most T1 transgenic plants (approximately 75%) transformed with pGC1::YC3.60 exhibited strong guard cell specific fluorescence, indicating a high degree of guard cell expression efficiency per transformant. Some plants also showed fluorescence in some leaf epidermal cells (data not shown). However, younger or immature guard cells showed no or much less GFP expression (Figure 3F,G). Furthermore, guard cells in sepals and hypocotyls also showed GFP expression (Figure 3H,I,J,K).

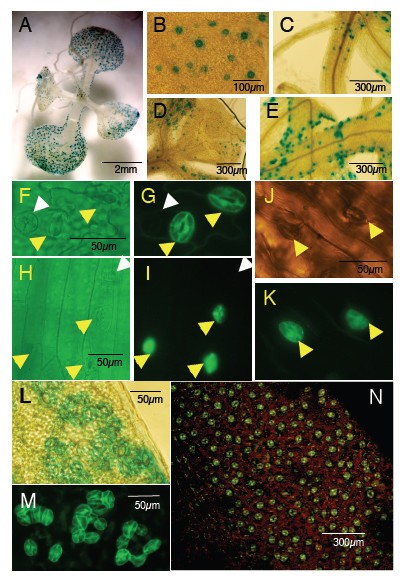

Figure 3

The GC1 promoter mediates strong reporter expression in guard cells of wild-type Arabidopsis seedlings, too many mouths mutant and also in tobacco. A. A two-week-old pGC1::GUS transgenic seedling. B. Different stages of guard cells exhibited different levels of GUS expression. C. Upper part of the hypocotyl. D. Young leaf and petiole. E. Leaf edge and petiole. F. & G. pGC1::YC3.60 was mainly expressed in mature guard cells, very weak in young or immature guard cells (white arrows in (f) & (g)). H. & I.pGC1::YC3.60 was expressed in guard cells on the hypocotyl. J. & K.pGC1::YC3.60 was expressed in guard cells on the sepal. L. & M. pGC1 mediated GUS (L) and GFP (M) reporter expression in clustered stomata in too many mouths. N. pGC1 mediated strong reporter gene expression in tobacco guard cells.

We further examined whether the GC1 promoter could drive guard cell specific reporter expression in a guard cell development mutant, too many mouths (tmm) [32]. The tmm mutant was transformed with either the pGC1::GUS or the pGC1::YC3.60 construct. GUS staining showed reporter gene expression in clustered stomata (Figure 3L). Similarly, GFP expression was observed in clustered stomata in tmm plants transformed with pGC1::YC3.60 (Figure 3M).

To test if the GC1 promoter can drive guard cell specific reporter gene expression in plants besides Arabidopsis, we also transformed pGC1::YC3.60 into tobacco plants. Interestingly, strong guard cell GFP expression was observed in tobacco leaves (Figure 3N).

Serial promoter deletions define a region for guard cell specificity and strength

A promoter region may contain both enhancer and repressor elements. To probe which part of the original 1716 bp promoter (full length, FL, -1693 bp/+23 bp) is required for strong guard cell specific reporter expression, four 5' truncated versions of the GC1 promoter were generated as D1 (-1140 bp/+23 bp), D2 (-861 bp/+23 bp), D3 (-443 bp/+23 bp), and D4 (-224 bp/+23 bp) (Figure 4). These truncated promoters were fused to the GUS reporter to generate the following constructs: pGC1(D1)::GUS, pGC1(D2)::GUS, pGC1(D3)::GUS and pGC1(D4)::GUS. These GUS reporter constructs were transformed into Columbia wild type plants side-by-side with the original pGC1(FL)::GUS construct. T1 seedlings (n = 50–100) from each transformation event were pooled and stained. The truncated pGC1(D1) drove similar or stronger GUS expression in seedlings than the original full-length promoter (Figure 4A), suggesting that elements in the region from -1693 bp to -1140 bp might repress promoter activity in guard cells. Promoters pGC1(D2) and pGC1(D3) led to weaker reporter gene expression in guard cells than pGC1(FL), suggesting elements in the region from -1140 bp to -443 bp might enhance the promoter activity in guard cells. The shortest promoter, pGC1(D4), drove reporter gene expression in tissues other than guard cells, such as roots and seed coats, suggesting the region from -861 bp to -224 bp was required for guard cell specific activity. This region contains 8 (T/A)AAAG elements that have been shown to be required for guard cell specific activity of the KST1 promoter in potato [24]. The truncated promoter, pGC1(D1), showed strong guard cell expression, suggesting that it contains elements for both guard cell specificity and promoter strength.

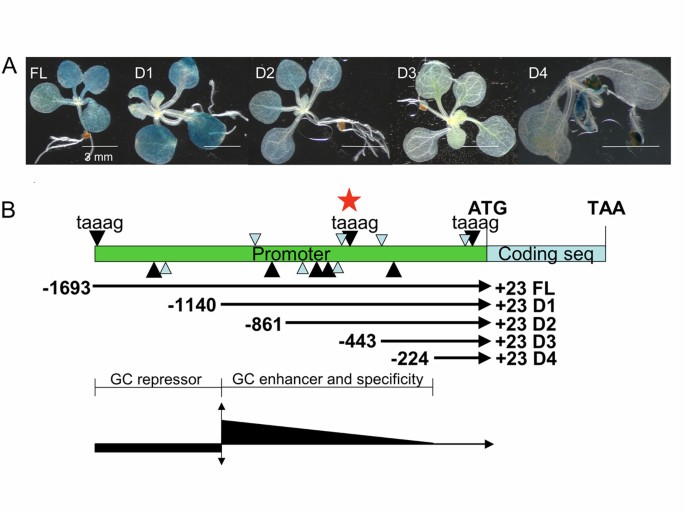

Figure 4

Serial deletion of the pGC1 promoter defines regions for guard cell expression. A. Representative T1 plants from different promoter::GUS transgenic lines. The pGC1(D1) (-1140/+23) promoter mediated stronger GUS expression in guard cells than the original full-length promoter (FL) (-1693/+23). GUS expression of pGC1(D2)::GUS and pGC1(D3)::GUS was weaker than that of the pGC1(FL)::GUS and pGC1(D1)::GUS. The shortest promoter pGC1(D4) (-224/+23) drives reporter expression in tissues and cells besides guard cells. B. Serial deletion of the pGC1 promoter defines regions for guard cell expression. The black arrowheads stand for TAAAG elements while the smaller gray arrowheads stand for AAAAG elements. Arrowheads on the top of the promoter line are on the sense strand while arrowheads below the promoter line are on the antisense strand. The central TAAAG on the sense strand was also marked by a star and was chosen for block mutagenesis. The region from -1693 to -1140 contains repressor elements for guard cell expression and the region from -1140 to -224 contains elements for guard cell specificity and also enhancer elements for guard cells expression.

Calcium imaging in guard cells of intact plants

Many physiological stimuli in plant cells induce changes in the intracellular calcium concentration. Calcium acts as a secondary messenger in many signal transduction cascades [33]. Cytosolic calcium concentrations can be monitored either by chemical reporters such as the ratiometric Ca2+-sensitive fluorescent dye fura-2 [34, 35], the genetically encoded calcium sensitive luminescent protein aequorin [14] or the fluorescent ratiometric calcium reporter yellow cameleon [12, 15, 36]. Stomatal closing signals, such as ABA and CO2, have been shown to induce calcium elevations in guard cells [16, 18, 19, 3742]. Spontaneous calcium transients in leaf epidermal samples have also been observed without any ABA treatment [15, 43, 44]. It is not clear whether spontaneous calcium transients occur in guard cells in intact plants as fura-2 injected Vicia faba guard cells did not show such transients [45]. A new generation calcium indicator, yellow cameleon, YC3.60, shows an enhanced calcium-dependent change in the ratio of YFP/CFP by nearly 600% compared with yellow cameleon 2.1 [31]. By combining the GC1 promoter with YC3.60, pGC1::YC3.60, as described before, we could observe strong guard cell expression of the YC3.60 in intact leaves, hypocotyls, and sepals (Figure 3).

We first measured calcium transients in intact leaf epidermis from plants transformed with pGC1::YC3.60 by imposing calcium oscillations as described previously [11, 46]. Robust calcium transients with ratiometric changes of up to a factor of 4 relative to the baseline ratio could be observed in guard cells (Figure 5B). Ratiometric changes of approximately 0.5 were observed using 35S::YC2.1 in response to imposed calcium transients [15, 43, 44, 46]. This further confirmed the robust ratiometric signal to noise efficiency of YC3.60. Next, we performed calcium imaging in intact Arabidopsis seedlings by mounting leaves to a microscope cover glass. Two different methods were tested: the first one was to submerge only the root with water and leave the shoot in air, and the second one was to submerge the entire plant in water. Spontaneous calcium transients were detected under both conditions (Table 1). A representative calcium transients/time course is shown in Figure 5D. Interestingly, the spontaneous calcium transients of two guard cells from the same stomate were often not synchronized (Figure 5C,D and additional files 10 and 11). These experiments clearly demonstrate that spontaneous calcium transients occurred in guard cells of intact plants and were not an artifact of imaging excised epidermis and illustrate the potential of the pGC1 promoter as a method for driving transgene and reporter expression in guard cells.

Table 1 Summary of calcium imaging in guard cells of intact pGC1::YC3.60 transgenic Arabidopsis plants.
Figure 5

Imposed intracellular calcium transients in pGC1::YC3.60 expressing guard cells and spontaneous calcium transients occur in guard cells of intact pGC1::YC3.60 transgenic plants. A. Fluorescence image of leaf epidermis of pGC1::YC3.60 transgenic plant. Note the surrounding epidermal cells were not fluorescent. B. The 6 guard cells in panel A all produced intracellular calcium transients in response to imposed calcium oscillations. The arrows mark the switch point from the depolarizing buffer to the Ca2+-containing hyperpolarizing buffer (see Methods). C. A pseudo-colored ratiometric image of a leaf from an intact Col plants transformed with pGC1::YC3.60. The orange-yellow color indicates higher [Ca2+] and the blue color indicates lower [Ca2+]. Spontaneous calcium transients occurred in leaves of intact Arabidopsis plants (movies are shown as additional files 10 and 11). D. A time course (25 minutes) of the emission ratios of the two guard cells marked by an arrow in C shows that spontaneous calcium transients occur in intact Arabidopsis plants. The ratio was calculated for individual cells by dividing the YFP emission intensity by the CFP emission intensity.

The use of pGC1 to manipulate specific gene expression in guard cells

Manipulation of specific gene expression in guard cells, either by highly expressing the wild-type gene or a dominant mutant form, or reducing its expression in guard cells, would be very powerful to probe a specific gene function in guard cells. To further explore the application of the GC1 promoter, we took the antisense approach to analyze reduction of gene expression in guard cells. For this purpose, a 35S::GFP transgenic line with stable GFP expression in both guard cells and epidermal cells (Figure 6A,B) was transformed with a pGC1(D1)::anti-GFP construct (anti-GFP fused to the truncated GC1 promoter pGC1(D1)). 34 out of 40 T1 plants of 35S::GFP plants transformed with pGC1(D1)::anti-GFP showed greatly reduced GFP expression in guard cells while the GFP expression level in epidermal cells was unchanged (Figure 6C,D). These observations suggest a remarkable antisense repression efficiency using pGC1(D1). Interestingly, less suppression of GFP expression was observed in immature guard cells (yellow arrow in Figure 6D). This is consistent with the observation that pGC1 drove less reporter gene expression in immature guard cells (Figure 3G). This experiment strongly indicates that an antisense approach can be used to reduce expression of selected genes in guard cells without affecting its expression in other cell types.

Figure 6

pGC1(D1)::anti-GFP caused reduction of GFP expression in guard cells of 35S::GFP plants. A. Leaf epidermis of a 35S::GFP transgenic plant (bright field with GFP filter). The arrows mark stomata. B. The fluorescence imaging of same leaf epidermis shown in A. Stomata are marked by yellow arrows. Note that both the guard cells and surrounding epidermal cells are fluorescent. C. Leaf epidermis of a T1 transgenic plant expressing pGC1(D1)::anti-GFP in the 35S::GFP background. All stomata are marked by yellow arrows. D. The fluorescence imaging of the same leaf epidermis shown in C. Note that 7 (marked by blue arrows) out of 8 stomata showed reduced GFP expression compared with the surrounding epidermal cells. One pair of guard cells (marked by the yellow arrow) still exhibited moderate GFP expression. This stomate was relatively immature compared with the other 7 stomata.


We report the identification of a strong Arabidopsis guard cell promoter, pGC1. Promoter::reporter fusion analyses showed strong guard cell specific reporter gene expression in wild-type Arabidopsis plants and the guard cell development mutant, too many mouths [32] and also tobacco plants. Serial deletions of the GC1 promoter defined regions for guard cell expression. Calcium imaging in guard cells in intact plants was made possible via the combination of the GC1 promoter and a new generation of calcium reporter, YC3.60 [31]. The GC1 promoter was also powerful for knocking down specific gene expression in guard cells using an antisense approach.

Comparison between the GC1 promoter and other known guard cell promoter

As the central regulator of water transpiration and CO2 uptake, guard cells have been developed as an integrative model system to investigate interplay among ion channel/transporter activities, light, plant hormones, secondary messengers, the cytoskeleton and membrane trafficking in regulating the physiological output: the stomatal aperture [2, 4, 5, 47, 48]. Several guard cell promoters have been reported. The KAT1(At5g46240) promoter delivered specific reporter expression in guard cells even though it sometimes induced reporter expression in other cells and tissues such as roots and inflorescences [25]. AtMYB60 (At1g08810) also showed specific expression in guard cells based on promoter::GUS and promoter::GFP study [49]. AtMYB61(At1g09540) has also been shown to be mainly expressed in guard cells [50]. Based on our guard cell-specific microarray data, we estimated the average transcription levels in Figure 1 and additional file 9. The AtMYB61 gene expression signal was the lowest among these genes. In the case of KAT1, its expression in guard cells was much higher than that in mesophyll cells. But its raw signal was approximately 5 to 10 fold lower than that of GC1. AtMYB6 0 also exhibited highly guard cell specific expression compared with its expression in mesophyll cells. However, the raw signal of AtMYB60 was only approximately one third of that of GC1. Furthermore, AtMYB60 is also highly expressed in seeds based on Genevestigator microarray analyses [27, 29, 5154]. Similarly, RAB18 (At5g66400) is also highly expressed in seeds besides its strong expression in guard cells. pGC1 drove very strong and specific reporter gene expression in guard cells (expression is very low in non-leaf tissues/organs), although reporter gene expression was observed in epidermal cells in some plants transformed with the pGC1::YC3.60 (data not shown). In summary, the GC1 promoter is a very strong guard cell promoter among those analyzed.

Spontaneous calcium transients in guard cells

Our current study with intact Arabidopsis plants using the genetically encoded calcium reporter YC3.60 driven by the GC1 promoter showed that spontaneous calcium transients occurred in guard cells in intact Arabidopsis plants. This is consistent with previous observations of spontaneous calcium transients in Arabidopsis guard cells [15, 43, 44]. However, the mechanisms causing spontaneous calcium transients are not yet characterized in depth. Several lines of evidence suggest a connection between hyperpolarization of the guard cell plasma membrane and spontaneous calcium transients in guard cells. In experiments where membrane potential and [Ca2+]cyt were measured simultaneously, hyperpolarization caused ABA-induced [Ca2+]cyt increases. Maintaining guard cells in a more hyperpolarized state produced spontaneous [Ca2+]cyt oscillations in Vicia faba guard cells [38], in a sub-population of Commelina guard cells [39] and in Arabidopsis guard cells [43]. Calcium imaging analyses in intact Arabidopsis plants using pGC1::YC3.60 show that spontaneous calcium transients also occur in intact plants. These spontaneous Ca2+ transients may also be the result of integrated signaling by multiple stimuli converging in guard cells, such as light conditions, CO2 and water balance. In Vicia faba no spontaneous calcium transients were observed in guard cells in intact plants [45]. In this case fura-2 (ca. 100 μM) was injected into guard cells. High concentrations of fura-2 may inhibit spontaneous calcium elevations, as loading the close fura-2 analogue, BAPTA, into Arabidopsis guard cells effectively inhibits these calcium transients [44]. By contrast, the estimated yellow cameleon concentration in guard cells of pGC1::YC3.60 transgenic plants was approximately 1 μM (see Methods). The lower concentration of yellow cameleon should interfere less with guard cell calcium homeostasis and could monitor more faithfully calcium concentration dynamics. Note that low concentrations of injected fura-2 also allowed resolution of repetitive calcium transients in guard cells [38, 39]. Note that BAPTA-derived fluorescent dyes such as fura-2 and indo-1 have certain complementary advantages to cameleon, as they can be loaded into cells that are not easily transformed [55] and these dyes can report rapid millisecond scale Ca2+ transients that occur in neurons[56], but have presently not yet been reported in plants using fura-2 or indo-1.

Circadian calcium oscillations at the whole plant leaf level with a daily rhythm have been demonstrated by several groups using aequorin as the calcium reporter [5759]. Most likely this circadian calcium oscillation results from synchronous changes in baseline cytosolic calcium in a cell population [60]. As the circadian calcium oscillation is related to the baseline of intracellular calcium, the rapid spontaneous calcium transients in individual guard cells likely would be filtered from circadian calcium measurements [60]. Repetitive calcium transients may reflect functions that include continuous calcium homeostasis between extracellular calcium, cytoplasmic calcium, and intracellular calcium stores. Spontaneous calcium transients in guard cells also correlate with the recent proposed calcium sensor priming hypothesis for calcium specificity in signaling, in which the stomatal closing signals ABA and CO2 are proposed to prime (de-inactivate) calcium sensitive steps that mediate stomatal closing [44, 61].

(T/A)AAAG cis elements and guard cell specific expression

(T/A)AAAG, a binding motif for Dof zinc finger transcription factors, has been suggested to play a critical role for guard-cell specific expression of KST1 promoter activity in potato based on block mutagenesis [24]. However, the putative promoter regions (1800 bp before ATG start codon) for AtACT7 (At5g09810), KAT1 (At5g46240), RAB18 (At5g66400), AtMYB60 (At1g08810), AtMYB61 (At1g09540) and GC1 (At1g22690) all contain a similar number of Dof factor binding motifs, the (T/A)AAAG elements, even though some of them do not show guard cell expression preference (see additional file 12). AtMYB61, which showed low expression in guard cells (Figure 1), contains 29 (T/A)AAAG elements in its putative promoter region, while the AtACT7 promoter contains 23 (T/A)AAAG elements. Promoter truncation suggests that the region from -861bp to -224 bp in the GC1 promoter contains elements for guard cell specific promoter activity (Figure 4). This region contains 8 (T/A)AAAG elements. However, block mutagenesis of the central TAAAG motif on the sense strand (marked by a star in Figure 4B) in this region did not affect reporter expression in guard cells (data not shown). Thus the (T/A)AAAG element alone may not explain why GC1 and other guard cell-specific genes exhibited guard cell-specific expression.


In this report, we pursued microarray (ATH1) analyses of guard cell expressed genes and used the information to isolate and characterize a strong guard cell promoter, pGC1. We analyzed the potential of pGC1 as a tool for manipulating gene expression in guard cells. The GC1 promoter was used to test several experimental manipulations. The GC1 promoter was used to express the calcium reporter YC3.60 in guard cells. This enabled us to perform calcium imaging experiments in guard cells of intact Arabidopsis plants. Our previous research has shown that for T-DNA insertional mutants, hundreds of transformants often needed to be generated to obtain at best a few lines expressing a reporter gene in guard cells when using the 35S promoter. Use of the GC1 promoter provides a method to dramatically increase the success rate of reporter gene expression. Furthermore, guard cell-specific antisense GFP expression using the GC1 promoter efficiently silenced GFP expression in guard cells of 35S::GFP transgenic plants. These data and the high transformation efficiency together suggest that the GC1 promoter provides a powerful tool for manipulating the expression of guard cell signaling components and for expressing reporters of diverse secondary messengers. Thus the GC1 promoter provides a method to enhance monitoring of signaling events in guard cells in response to different treatments and to study whole plant responses in guard cell specific transgenic mutants.

Materials and Methods

Plant material

Arabidopsis thaliana (Columbia ecotype) plants were used for transformation experiments unless otherwise specified. The 35S::GFP transgenic line was generated for a previous study [62]. The guard cell development mutant, too many mouths, was a kind gift from Dr. Fred Sack at the University of British Columbia, Vancouver.

GeneChip microarray experiments

Plant growth, ABA treatment, guard cell protoplast isolation, and RNA extraction were performed as previously described [26]. Affymetrix Arabidopsis ATH1 genome arrays (Santa Clara, CA) were used, representing approximately 23,000 genes. Transcripts were amplified, labeled, and hybridized at the University of California, San Diego Gene Chip Core facility. For each condition (with or without ABA treatment, guard cell or mesophyll cell), two independent hybridizations were performed. Transcriptional inhibitors (33 mg/L actinomycin D and 100 mg/L cordycepin) were added during protoplast isolation for RNA samples for four chip hybridizations as described [26]. ATH1 microarray data were deposited at MIAMExpress [63] with an accession number E-MEXP-1443 and also on our laboratory's website for public downloading (see Additional files 1, 2, 3, 4, 5, 6, 7 and 8).

Construction of recombinant plasmids

To amplify the GC1 (At1g22690) promoter from the Col genomic DNA by PCR, primers YZ27 (5'-CATGCCATGG atttcttgagtagtgattttgaag-3', right before the ATG start codon with NcoI site) and YZ28 (5'-ACGCGTCGAC gagtaaagattcagtaacccg-3', 1693 bp upstream of the transcriptional start (Figure 2) with SalI site) were utilized. The PCR product was cloned into pGEM-Teasy vector (Invitrogen, Carlsbad, CA) to create pGEM-T-pGC1.

To clone the GC1 promoter into the pBI101 vector, pGEM-T-pGC1 was first cut by NcoI. The sticky end was then filled-in by T4 DNA polymerase (New England BioLabs) to create a blunt end. The pGC1 fragment was then released by SalI digestion. Meanwhile, the destination vector, pBI101, was cut sequentially by SmaI and SalI. The pGC1 fragment was then inserted upstream of the GUS reporter gene in the pBI101 vector to create pBI101-pGC1::GUS construct (simplified as pGC1::GUS).

To create the 5'-deletion series of the pGC1 promoter, primer YZ27 was used with primers YZ159 (5'-GCGTCGAC atggttgcaacagagaggatga-3', 1141 bp upstream of the transcriptional start, D1), YZ160 (5'-GCGTCGAC ctaatgaagggtgccgcttattg-3', 861 bp upstream of the transcriptional start, D2), YZ161 (5'-GCGTCGACcaatattgcgtctgcgtttcct-3', 466 bp upstream of the transcriptional start, D3) and YZ162 (5'-GCGTCGACgaaccaatcaaaactgtttgcata-3', 224 bp upstream of the transcriptional start, D4) respectively for genomic PCR to amplify pGC1(D1), pGC1(D2), pGC1(D3) and pGC1(D4) respectively (Figure 4). The PCR fragments were then cloned into pGEM-T-easy vector and then subcloned into pBI101 vector to create pBI101-pGC1(D1)::GUS, pBI101-pGC1(D2)::GUS, pBI101-pGC1(D3)::GUS, and pBI101-pGC1(D4)::GUS.

To create pBI101-pGC1::YC3.60 construct, YC3.60 was first released from pcDNA3-YC3.60 [31] by EcoRI/BamHI double digestion. Then the BamHI-5'-YC3.60-3'-EcoRI fragment was cloned into pSK vector (prepared by EcoRI and BamHI digestion) to create pSK-YC3.60 construct. The pSK-YC3.60 was then digested with NotI and NcoI to receive NotI-5'-pGC1-3'-NcoI fragment from pGEM-T-pGC1. This ligation resulted in the pSK-pGC1::YC3.60. The pGC1::YC3.60 fragment was released by SalI/SacI double digestion, meanwhile the pBI101 vector was digested with SalI/SacI to remove the GUS reporter gene. The pBI101(SalI/SacI) was ligated with SalI-5'-pGC1::YC3.60-3'-SacI to create pBI101-pGC1::YC3.60 construct.

To create pGreenII 0179-pGC1(D1)::anti-GFP binary vector with hygromycin selective marker in plant, the 35S terminator was amplified with YZ439 (5'-AAGAGATCTATCTAGA GTCCGCAA-3', with XbaI) and YZ440 (5'-GCACGCTCGAGCTC gtcactggattttggttttagg-3', with SacI site) from vector pAVA319 [64]. The PCR product was then subsequently digested with XbaI and SacI. The 5'-XbaI-35S terminator-SacI-3' was ligated into pGreenII 0179-XabI...SacI to create pGreenII 0179-terminator. The pGC1(D1) was released from pGEM-T-pGC1(D1) by NotI digestion, then filled-in, then cut by SalI to create 5'-SalI-pGC1(D1)-NotI(filled-in blunt end). Meanwhile, the pGreenII 0179-terminator was doubled digested with SalI and EcoRV. These two fragments were ligated to generate pGreenII 0179-pGCP(D1)-terminator vector. The antisense GFP was amplified with primers YZ449 (5'-ACATGCCATGG ttacttgtacagctcgtccatgcc-3', reverse end of GFP with NcoI) and YZ513 (5'-ctagTCTAGA atg gtgagcaagggcgagg-3', start of GFP with XbaI). The PCR fragment was double digested with NcoI and XbaI. The pGreenII 0179-pGC1(D1)-Terminator was also double digested with NcoI and XbaI. The pGeenII 0179-pGC1(D1)-Terminator fragment was ligated with 5'-NcoI -anti-GFP-XbaI-3' to produce pGeenII 0179-pGC1(D1)::anti-GFP binary construct.

The central TAAAG motif (-579-->-575) on the sense stand was changed to CGGGA by block mutagenesis using the QuickChange Site-Directed Mutagenesis Kit from Stratagene (La Jolla, California).

Arabidopsis transformation and selection

The binary constructs, pBI101-pGC1::YC3.60, pBI101-pGC1::GUS, pBI101-pGC1(D1)::GUS, pBI101-pGC1(D2)::GUS, pBI101-pGC1(D3)::GUS and pBI101-pGC1(D4)::GUS were transformed into the Agrobacterium tumefaciens strain GV3101 by electroporation. The transformants were selected on LB plates with both kanamycin (selective marker for the construct) and gentamycin (selective marker for the Agrobacterium). Arabidopsis plants were then transformed by Agrobacterium GV3101 hosting respective constructs following the dipping method as described by Clough and Bent [65]. The T0 seeds were selected on 1/2 MS plates with 50 μg/ml kanamycin.

In the case of pGreenII 0179-pGC1(D1)::anti-GFP, the GV3101 with the helper plasmid pSOUP was used as the host strain, and the selection for Agrobacterium transformants was carried on LB plates with Kanamycin, gentamycin, and tetracyclin. This was used to transform 35S::GFP transgenic plants (kanamycin resistant). The T0 seeds were selected on 1/2 MS plates with 25 μg/ml hygromycin (Roche).

GUS staining

Seedlings were stained following a previously described protocol [62].

Epi-fluorescence image acquisition

Transgenic Arabidopsis seedlings or sepals of pBI101-pGC1::YC3.60 were simply placed between a microscope slide and a cover glass. A Nikon digital camera was attached to the microscope. Exposure time for the bright image is 5 seconds and 15–25 seconds for fluorescence image (excitation wavelength is 440 nm). For 35S::GFP plants and 35S::GFP plants transformed with pGreenII 0179-pGC1(D1)::anti-GFP, intact leaf epidermis were used for epi-fluorescence image acquisition.

Tobacco plant transformation

In vitro sterile shoot cultures of Nicotiana tabacum cv. SR1 were maintained on 1/2 MS agar medium containing 15 g/l sucrose. The pH was adjusted to 5.5 before autoclaving. The tobacco culture was grown at 25°C, with a light/dark cycle of 16/8 h (light intensity was approximately 70 μmol m-2 s-1). Stable transformation of Nicotiana tabacum SR1 with pBI101-pGC1-YC3.60 was performed as described previously [66]. Transgenic regenerated tobacco shoots were selected by kanamycin (100 μg/ml) resistance and were then transferred on 1/2 MS agar medium containing 15 g/l sucrose supplemented with kanamycin (100 μg/ml) and cefotaxime (200 μg/ml). T1 regenerated plants, which were able to set up root organogenesis in presence of kanamycin, were then analyzed for cameleon expression.

Confocal analysis of transgenic tobacco

The tobacco leaves of plant transformed with pBI101-pGC1-YC3.60 were observed with a Leica TCS SP2 laser confocal microscope (Leica Microsystems). For cameleon detection, excitation was at 514 nm and emission between 525 and 540 nm. The images acquired from the confocal microscope were processed using Image J [67].

Calcium imaging and imposed Ca2+ Transients

All calcium imaging in this work was performed with a TE300 inverted microscope using a TE-FM Epi-Fluorescence attachment (Nikon Inc. Melville, NY). Excitation from a 75 W Xenon lamp (Osram, Germany) was always attenuated 97% by using both 4× and 8× neutral density filters (3% transmission) to reduce bleaching of reporters during time-resolved imaging. Wavelength specificity was obtained with a cameleon filter set (440/20 excitation, 485/40 emission1, 535/30 emission2, 455DCLP dichroic; filter set 71007a Chroma Technology, Rockingham, VT). Filter wheel, shutter and CoolSNAP CCD camera from Photomerics (Roper Scientific, Germany) were controlled with Metafluor software (MDS, Inc., Toronto, Canada).

Intact leaf epidermes of pGC1::YC3.60 transgenic plants were prepared for microscopy as described in Mori et al. (2006) [11]. On the microscope, intact epidermis was perfused with depolarization buffer (10 mM MES-Tris buffer, pH 6.1 containing 25 mM dipotassium imminodiacetate, and 100 μM BAPTA) for 10 minutes to obtain a background. Subsequently hyperpolarizing buffer containing Ca2+ (10 mM MES-Tris buffer, pH 6.1, 1 mM dipotassium imminodiacetate, and 1 mM CaCl2) was applied for 2 minutes intervals, followed by 5 minutes of depolarizing buffer.

Calcium imaging in guard cells of intact plants

Both intact leaves and intact plants were used in this study. Medical adhesive (Hollister Inc., Libertyville, IL) was used to attach leaves to microscope cover glasses. A paintbrush was used to gently press the leaf to the coverslip. In the case of intact plants two different methods were followed. The first method was to submerge only the root with water while the shoot was left in air. The second method was to completely submerge entire seedlings in water. Sometimes submerging only the root but not the shoot caused the leaf attached to the cover slip to show wilting in less than 10 minutes with subsequent closure of the stomata. Most of the intact plant imaging experiments were therefore carried out by submerging both the shoot (leaves) and the root in water. The submersion of the entire plant prevented the leaf from drying out and no stomatal closure was observed for more than 50 minutes. The imaging protocol was the same as in Mori et al., 2006 [11].

Estimation of yellow cameleon concentration in guard cells

Recombinant yellow cameleon protein was isolated after expression in E coli. Recombinant cameleon protein was then added at defined concentrations to a glass cover slip for fluorescence imaging. Then two additional cover slips were used to create a slanted gradient of cameleon solution thicknesses. This enabled analysis of various solution thicknesses in the range of stomatal guard cell thicknesses. Diluted yellow cameleon protein solutions at different concentrations were analyzed and the florescence intensity was measured for each concentration at various thicknesses. Calibration curves were generated for protein concentrations and florescent intensities at different thicknesses. This was utilized to estimate the yellow cameleon protein concentration in guard cells of pGC1::YC3.6 transgenic plants.


  1. 1.

    MacRobbie EA: Signal transduction and ion channels in guard cells. Phil Trans Roy Soc London. 1998, 353 (1374): 1475-1488. 10.1098/rstb.1998.0303.

  2. 2.

    Hetherington AM, Woodward FI: The role of stomata in sensing and driving environmental change. Nature. 2003, 424 (6951): 901-908. 10.1038/nature01843.

  3. 3.

    Assmann SM, Shimazaki K: The multisensory guard cell. Stomatal responses to blue light and abscisic acid. Plant Physiol. 1999, 119: 809-816. 10.1104/pp.119.3.809.

  4. 4.

    Schroeder JI, Allen GJ, Hugouvieux V, Kwak JM, Waner D: Guard cell signal transduction. Ann Rev Pl Physiol & Pl Mol Biol. 2001, 52: 627-658. 10.1146/annurev.arplant.52.1.627.

  5. 5.

    Shimazaki K, Doi M, Assmann SM, Kinoshita T: Light regulation of stomatal movement. Annu Rev Plant Biol. 2007, 58: 219-247. 10.1146/annurev.arplant.57.032905.105434.

  6. 6.

    Pei Z-M, Murata Y, Benning G, Thomine S, Klusener B, Allen GJ, Grill E, Schroeder JI: Calcium channels activated by hydrogen peroxide mediate abscisic acid signalling in guard cells. Nature. 2000, 406: 731-734. 10.1038/35021067.

  7. 7.

    Lemtiri-Chlieh F, MacRobbie EA, Webb AA, Manison NF, Brownlee C, Skepper JN, Chen J, Prestwich GD, Brearley CA: Inositol hexakisphosphate mobilizes an endomembrane store of calcium in guard cells. Proc Natl Acad Sci USA. 2003, 100: 10091-10095. 10.1073/pnas.1133289100.

  8. 8.

    Coursol S, Fan LM, Le Stunff H, Spiegel S, Gilroy S, Assmann SM: Sphingolipid signalling in Arabidopsis guard cells involves heterotrimeric G proteins. Nature. 2003, 423: 651-654. 10.1038/nature01643.

  9. 9.

    Webb AA, Larman MG, Montgomery LT, Taylor JE, Hetherington AM: The role of calcium in ABA-induced gene expression and stomatal movements. Plant J. 2001, 26: 351-362. 10.1046/j.1365-313X.2001.01032.x.

  10. 10.

    Ng C, Carr K, McAinsh M, Powell B, Hetherington A: Drought-induced guard cell signal transduction involves sphingosine-1-phosphate. Nature. 2001, 410: 596-599. 10.1038/35069092.

  11. 11.

    Mori IC, Murata Y, Yang Y, Munemasa S, Wang YF, Andreoli S, Tiriac H, Alonso JM, Harper JF, Ecker JR: CDPKs CPK6 and CPK3 function in ABA regulation of guard cell S-type anion- and Ca2+ – permeable channels and stomatal closure. PLoS Biol. 2006, 4: 1749-1762. 10.1371/journal.pbio.0040327.

  12. 12.

    Miyawaki A, Griesbeck O, Heim R, Tsien RY: Dynamic and quantitative Ca2+ measurements using improved cameleons. Proc Natl Acad Sci USA. 1999, 96: 2135-2140. 10.1073/pnas.96.5.2135.

  13. 13.

    Belousov VV, Fradkov AF, Lukyanov KA, Staroverov DB, Shakhbazov KS, Terskikh AV, Lukyanov S: Genetically encoded fluorescent indicator for intracellular hydrogen peroxide. Nat Methods. 2006, 3: 281-286. 10.1038/nmeth866.

  14. 14.

    Knight MR, Campbell AK, Smith SM, Trewavas AJ: Transgenic plant aequorin reports the effects of touch and cold-shock and elicitors on cytoplasmic calcium. Nature. 1991, 352 (6335): 524-526. 10.1038/352524a0.

  15. 15.

    Allen GJ, Kwak JM, Chu SP, Llopis J, Tsien RY, Harper FJ, Schroeder JI: Cameleon calcium indicator reports cytoplasmic calcium dynamics in Arabidopsis guard cells. Plant Journal. 1999, 19: 735-738. 10.1046/j.1365-313x.1999.00574.x.

  16. 16.

    Gilroy S, Fricker MD, Read ND, Trewavas AJ: Role of calcium in signal transduction of Commelina guard cells. Plant Cell. 1991, 3: 333-344. 10.1105/tpc.3.4.333.

  17. 17.

    Allen GJ, Kuchitsu K, Chu SP, Murata Y, Schroeder JI: Arabidopsis abi1-1 and abi2-1 phosphatase mutations reduce abscisic acid-induced cytoplasmic calcium rises in guard cells. Plant Cell. 1999, 11 (9): 1785-1798. 10.1105/tpc.11.9.1785.

  18. 18.

    McAinsh MR, Brownlee C, Hetherington AM: Abscisic acid-induced elevation of guard cell cytosolic Ca2+ precedes stomatal closure. Nature. 1990, 343: 186-188. 10.1038/343186a0.

  19. 19.

    Schroeder JI, Hagiwara S: Repetitive increases in cytosolic Ca2+ of guard cells by abscisic acid activation of non-selective Ca2+-permeable channels. Proc Natl Acad Sci USA. 1990, 87: 9305-9309. 10.1073/pnas.87.23.9305.

  20. 20.

    Benfey PN, Ren L, Chua NH: The CaMV 35S enhancer contains at least two domains which can confer different developmental and tissue-specific expression patterns. EMBO J. 1989, 8: 2195-2202.

  21. 21.

    Kwak JM, Murata Y, Baizabal-Aguirre VM, Merrill J, Wang J, Kemper A, Hawke D, Tallman G, Schroeder JI: Dominant negative guard cell K+ channel mutants reduce inward rectifying K+ currents and light-induced stomatal opening in Arabidopsis. Plant Physiol. 2001, 127 (2): 473-485. 10.1104/pp.127.2.473.

  22. 22.

    Ichida AM, Pei Z-M, Baizabal-Aguirre V, Turner KJ, Schroeder JI: Expression of a Cs+ resistant guard cell K+ channel confers Cs+ -resistant light-induced stomatal opening in transgenic Arabidopsis. Plant Cell. 1997, 9: 1843-1857. 10.1105/tpc.9.10.1843.

  23. 23.

    Li J, Want X, Watson MB, Assmann SM: Regulation of abscisic acid-induced stomatal closure and anion channels by guard cell AAPK kinase. Science. 2000, 287: 300-303. 10.1126/science.287.5451.300.

  24. 24.

    Plesch G, Ehrhardt T, Mueller-Roeber B: Involvement of TAAAG elements suggests a role for Dof transcription factors in guard cell-specific gene expression. Plant J. 2001, 28: 455-464. 10.1046/j.1365-313X.2001.01166.x.

  25. 25.

    Nakamura RL, McKendree WL, Hirsch RE, Sedbrook JC, Gaber RF, Sussman MR: Expression of an Arabidopsis potassium channel gene in guard cells. Plant Physiol. 1995, 109: 371-374. 10.1104/pp.109.2.371.

  26. 26.

    Leonhardt N, Kwak JM, Robert N, Waner D, Leonhardt N, Schroeder JI: Microarray expression analyses of Arabidopsis guard cells and isolation of a recessive ABA hypersensitive PP2C mutant. Plant Cell. 2004, 16: 596-615. 10.1105/tpc.019000.

  27. 27.

    Arabidopsis thaliana microarray database and analysis toolbox. []

  28. 28.

    Wigoda N, Ben-Nissan G, Granot D, Schwartz A, Weiss D: The gibberellin-induced, cysteine-rich protein GIP2 from Petunia hybrida exhibits in planta antioxidant activity. Plant J. 2006, 48: 796-805. 10.1111/j.1365-313X.2006.02917.x.

  29. 29.

    Zimmermann P, Hirsch-Hoffmann M, Hennig L, Gruissem W: GENEVESTIGATOR. Arabidopsis microarray database and analysis toolbox. Plant Physiol. 2004, 136: 2621-2632. 10.1104/pp.104.046367.

  30. 30.

    Kilian J, Whitehead D, Horak J, Wanke D, Weinl S, Batistic O, D'Angelo C, Bornberg-Bauer E, Kudla J, Harter K: The AtGenExpress global stress expression data set: protocols, evaluation and model data analysis of UV-B light, drought and cold stress responses. Plant J. 2007, 50: 347-363. 10.1111/j.1365-313X.2007.03052.x.

  31. 31.

    Nagai T, Yamada S, Tominaga T, Ichikawa M, Miyawaki A: Expanded dynamic range of fluorescent indicators for Ca2+ by circularly permuted yellow fluorescent proteins. Proc Natl Acad Sci USA. 2004, 101: 10554-10559. 10.1073/pnas.0400417101.

  32. 32.

    Yang M, Sack FD: The too many mouths and four lips mutations affect stomatal production in Arabidopsis. Plant Cell. 1995, 7: 2227-2239. 10.1105/tpc.7.12.2227.

  33. 33.

    Hetherington AM, Brownlee C: The generation of Ca2+ signals in plants. Annu Rev Plant Biol. 2004, 55: 401-427. 10.1146/annurev.arplant.55.031903.141624.

  34. 34.

    Ehrhardt DW, Wais R, Long SR: Calcium spiking in plant root hairs responding to Rhizobium nodulation signals. Cell. 1996, 85: 673-681. 10.1016/S0092-8674(00)81234-9.

  35. 35.

    Pierson ES, Miller DD, Callaham DA, van Aken J, Hackett G, Hepler PK: Tip-localized calcium entry fluctuates during pollen tube growth. Dev Biol. 1996, 174: 160-173. 10.1006/dbio.1996.0060.

  36. 36.

    Miyawaki A, Llopis J, Heim R, McCaffery JM, Adams JM, Ikura JA, Tsien M: Fluorescent indicators for Ca2+ based on green fluorescent proteins and calmodulin. Nature. 1997, 388: 882-887. 10.1038/42264.

  37. 37.

    Allen GJ, Chu SP, Schumacher K, Shimazaki CT, Vafeados D, Kemper A, Hawke SD, Tallman G, Tsien RY, Harper JF: Alteration of stimulus- specific guard cell calcium oscillations and stomatal closing in Arabidopsis det3 mutant. Science. 2000, 289: 2338-2342. 10.1126/science.289.5488.2338.

  38. 38.

    Grabov A, Blatt MR: Membrane voltage initiates Ca2+ waves and potentiates Ca2+ increases with abscisic acid in stomatal guard cells. Proc Natl Acad Sci USA. 1998, 95: 4778-4783. 10.1073/pnas.95.8.4778.

  39. 39.

    Staxen I, Pical C, Montgomery LT, Gray JE, Hetherington AM, McAinsh MR: Abscisic acid induces oscillations in guard-cell cytosolic free calcium that involve phosphoinositide-specific phospholipase C. Proc Natl Acad Sci USA. 1999, 96: 1779-1784. 10.1073/pnas.96.4.1779.

  40. 40.

    Allan AC, Fricker MD, Ward JL, Beale MH, Trewavas AJ: Two transduction pathways mediate rapid effects of abscisic acid in Commelina guard cells. Plant Cell. 1994, 6: 1319-1328. 10.1105/tpc.6.9.1319.

  41. 41.

    Irving HR, Gehring CA, Parish RW: Changes in cytosolic pH and calcium of guard cells precede stomatal movements. Proc Natl Acad Sci USA. 1992, 89: 1790-1794. 10.1073/pnas.89.5.1790.

  42. 42.

    Marten H, Konrad KR, Dietrich P, Roelfsema MR, Hedrich R: Ca2+-dependent and -independent abscisic acid activation of plasma membrane anion channels in guard cells of Nicotiana tabacum. Plant Physiol. 2007, 143: 28-37. 10.1104/pp.106.092643.

  43. 43.

    Klüsener B, Young J, Murata Y, Allen G, Mori I, Hugouvieux V, Schroeder JI: Convergence of calcium signaling pathways of pathogenic elicitors and ABA in Arabidopsis guard cells. Plant Physiol. 2002, 130: 2152-2163. 10.1104/pp.012187.

  44. 44.

    Young JJ, Mehta S, Israelsson M, Godoski J, Grill E, Schroeder JI: CO2 signaling in guard cells: calcium sensitivity response modulation, a Ca2+-independent phase, and CO2 insensitivity of the gca2 mutant. Proc Natl Acad Sci USA. 2006, 103: 7506-7511. 10.1073/pnas.0602225103.

  45. 45.

    Levchenko V, Konrad KR, Dietrich P, Roelfsema MR, Hedrich R: Cytosolic abscisic acid activates guard cell anion channels without preceding Ca2+ signals. Proc Natl Acad Sci USA. 2005, 102: 4203-4208. 10.1073/pnas.0500146102.

  46. 46.

    Allen GJ, Chu SP, Harrington CL, Schumacher K, Hoffmann T, Tang YY, Grill E, Schroeder JI: A defined range of guard cell calcium oscillation parameters encodes stomatal movements. Nature. 2001, 411: 1053-1057. 10.1038/35082575.

  47. 47.

    Pandey S, Zhang W, Assmann SM: Roles of ion channels and transporters in guard cell signal transduction. FEBS Lett. 2007, 581: 2325-2336. 10.1016/j.febslet.2007.04.008.

  48. 48.

    Sutter JU, Sieben C, Hartel A, Eisenach C, Thiel G, Blatt MR: Abscisic acid triggers the endocytosis of Arabidopsis KAT1 K+ channel and its recycling to the plasma membrane. Curr Biol. 2007, 17: 1396-1402. 10.1016/j.cub.2007.07.020.

  49. 49.

    Cominelli E, Galbiati M, Vavasseur A, Conti L, Sala T, Vuylsteke M, Leonhardt N, Dellaporta SL, Tonelli C: A guard-cell-specific MYB transcription factor regulates stomatal movements and plant drought tolerance. Curr Biol. 2005, 15: 1196-1200. 10.1016/j.cub.2005.05.048.

  50. 50.

    Liang YK, Dubos C, Dodd IC, Holroyd GH, Hetherington AM, Campbell MM: AtMYB61, an R2R3-MYB transcription factor controlling stomatal aperture in Arabidopsis thaliana. Curr Biol. 2005, 15: 1201-1206. 10.1016/j.cub.2005.06.041.

  51. 51.

    Fait A, Angelovici R, Less H, Ohad I, Urbanczyk-Wochniak E, Fernie AR, Galili G: Arabidopsis seed development and germination is associated with temporally distinct metabolic switches. Plant Physiol. 2006, 142: 839-854. 10.1104/pp.106.086694.

  52. 52.

    Nakabayashi K, Okamoto M, Koshiba T, Kamiya Y, Nambara E: Genome-wide profiling of stored mRNA in Arabidopsis thaliana seed germination: epigenetic and genetic regulation of transcription in seed. Plant J. 2005, 41: 697-709. 10.1111/j.1365-313X.2005.02337.x.

  53. 53.

    Schmid M, Davison TS, Henz SR, Pape UJ, Demar M, Vingron M, Schölkopf B, Weigel D, Lohmann JU: A gene expression map of Arabidopsis thaliana development. Nat Genet. 2005, 37: 501-506. 10.1038/ng1543.

  54. 54.

    Yamauchi Y, Ogawa M, Kuwahara A, Hanada A, Kamiya Y, Yamaguchi S: Activation of gibberellin biosynthesis and response pathways by low temperature during imbibition of Arabidopsis thaliana seeds. Plant Cell. 2004, 16: 367-378. 10.1105/tpc.018143.

  55. 55.

    Kuchitsu K, Ward JM, Allen GJ, Schelle I, Schroeder JI: Loading acetoxymethyl ester fluorescent dyes into the cytoplasm of Arabidopsis and Commelina guard cells. New Phytologist. 2002, 153: 527-533. 10.1046/j.0028-646X.2001.00346.x.

  56. 56.

    Grynkiewicz G, Poenie M, Tsien RY: A new generation of Ca2+ indicators with greatly improved fluorescence properties. J Biol Chem. 1985, 260: 3440-3450.

  57. 57.

    Tang RH, Han S, Zheng H, Cook CW, Choi CS, Woerner TE, Jackson RB, Pei ZM: Coupling diurnal cytosolic Ca2+ oscillations to the CAS-IP3 pathway in Arabidopsis. Science. 2007, 315: 1423-1426. 10.1126/science.1134457.

  58. 58.

    Johnson CH, Knight MR, Kondo T, Masson P, Sedbrook J, Haley A, Trewavas A: Circadian oscillations of cytosolic and chloroplastic free calcium in plants. Science. 1995, 269: 1863-1865. 10.1126/science.7569925.

  59. 59.

    Dodd AN, Jakobsen MK, Baker AJ, Telzerow A, Hou SW, Laplaze L, Barrot L, Poethig RS, Haseloff J, Webb AA: Time of day modulates low-temperature Ca signals in Arabidopsis. Plant J. 2006, 48: 962-973. 10.1111/j.1365-313X.2006.02933.x.

  60. 60.

    Imaizumi T, Schroeder JI, Kay SA: In SYNC: the ins and outs of circadian oscillations in calcium. Sci STKE. 2007, 2007 (390): pe32-10.1126/stke.3902007pe32.

  61. 61.

    Israelsson M, Siegel RS, Young J, Hashimoto M, Iba K, Schroeder JI: Guard cell ABA and CO2 signaling network updates and Ca2+ sensor priming hypothesis. Curr Opin Plant Biol. 2006, 9: 654-663. 10.1016/j.pbi.2006.09.006.

  62. 62.

    Hugouvieux V, Murata Y, Young JJ, Kwak M, Mackesy DZ, Schroeder JI: Localization, ion channel regulation and genetic interactions during abscisic acid signaling of the nuclear mRNA cap-binding protein, ABH1. Plant Physiol. 2002, 130: 1276-1287. 10.1104/pp.009480.

  63. 63.

    MIAMExpress. []

  64. 64.

    von Arnim AG, Deng XW, Stacey MG: Cloning vectors for the expression of green fluorescent protein fusion proteins in transgenic plants. Gene. 1998, 221: 35-43. 10.1016/S0378-1119(98)00433-8.

  65. 65.

    Clough SJ, Bent AF: Floral dip: a simplified method for Agrobacterium-mediated transformation of Arabidopsis thaliana. Plant J. 1998, 16: 735-743. 10.1046/j.1365-313x.1998.00343.x.

  66. 66.

    Horsch RB, Fry JE, Hoffmann NL, Eichholtz D, Rogers SG, Fraley RT: A simple and general method for transferring genes into plants. Science. 1985, 227: 1229-1231. 10.1126/science.227.4691.1229.

  67. 67.

    Image J. []

Download references


This work was supported by NSF MCB0417118 and NIH R01GM060396 grants to JIS. YY was supported by a Ruth L. Kirschstein National Research Service Award fellowship (5F32GM071104).

Author information

Correspondence to Julian I Schroeder.

Additional information

Competing interests

The guard cell specific and mesophyll cell specific microarray data generated in this study will be available at public data bases [63] and the GC1 promoter construct described in this manuscript will be made freely available to the academic and non-profit laboratories and also to PIPRA-associated projects. The authors' institution has submitted a patent application that includes the GC1 promoter.

Authors' contributions

YY performed the second sets of guard cell/mesophyll cell microarray experiments, isolation of the GC1 promoter, construction of all plasmids, transformation of Arabidopsis plants, analyses of GUS and yellow cameleon expression patterns and wrote the manuscript. AC did calcium imaging in intact Arabidopsis plants and transformation of tobacco plants. NL did the first sets of guard cell/mesophyll cell ATH1 microarray experiments. RS did the imposed calcium oscillation and analysis of the yellow cameleon concentration in guard cells. JIS proposed the study, participated in its design and coordination and co-wrote the manuscript with YY. All authors read and approved the final manuscript.

Electronic supplementary material

Additional file 1: Experiment I-Guard cells without ABA (JS33.xls). Actinomycin and Cordycepin were added during protoplast isolation. (XLS 5 MB)

Additional file 2: Experiment I-Guard cells treated with 100 μM ABA (JS34.xls). Actinomycin and Cordycepin were added during protoplast isolation. (XLS 5 MB)

Additional file 3: Experiment I-Mesophyll cells without ABA (JS35.xls). Actinomycin and Cordycepin were added during protoplast isolation. (XLS 5 MB)

Additional file 4: Experiment I-Mesophyll cells treated with 100 μM ABA (JS36.xls). Actinomycin and Cordycepin were added during protoplast isolation. (XLS 5 MB)

Additional file 5: Experiment II-Guard cells without ABA (JS85.xls). (XLS 6 MB)

Additional file 6: Experiment II-Guard cells treated with 100 μM ABA (JS86.xls) (XLS 6 MB)

Additional file 7: Experiment II-Mesophyll cells without ABA (JS87.xls). (XLS 6 MB)

Additional file 8: Experiment II-Mesophyll cells treated with 100 μM ABA (JS88.xls). (XLS 6 MB)

Additional file 9: Guard cell promoter candidate gene expression in GC and MC. (DOC 76 KB)

Additional file 10: Representative movie 1 of spontaneous calcium transients occurring in guard cells of intact pGC1::YC3.60 transgenic plants. The time compression factor is 30 times. (AVI 10 MB)

Additional file 11: Representative movie 2 of spontaneous calcium transients occurring in guard cells of intact pGC1::YC3.60 transgenic plants. The time compression factor is 30 times. (AVI 5 MB)

Additional file 12: Multiple (T/A)AAAG elements are present in all the examined promoters. (DOC 58 KB)

Authors’ original submitted files for images

Rights and permissions

Reprints and Permissions

About this article

Cite this article

Yang, Y., Costa, A., Leonhardt, N. et al. Isolation of a strong Arabidopsis guard cell promoter and its potential as a research tool. Plant Methods 4, 6 (2008).

Download citation


  • Guard Cell
  • Reporter Gene Expression
  • AAAG Element
  • Arabidopsis Guard Cell
  • Drive Reporter Gene Expression
